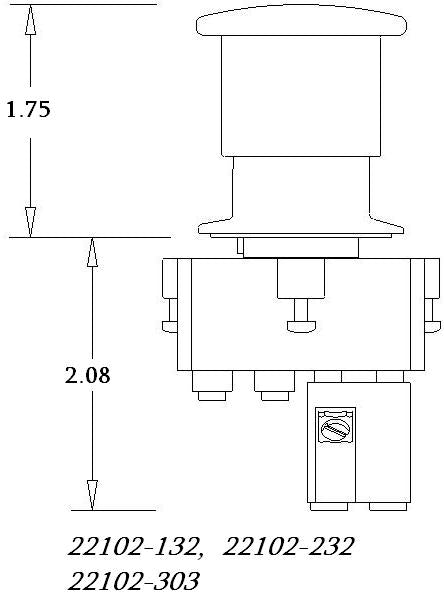

22102-303 22.5 mm Operators

22102-303 22.5 mm Operators

SKU: 22102303 Download PDF

Now $236.33
BEFORE   Now $236.33
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The 225 mm Operators are control circuit devices that are hand operated and rated as "Heavy Duty" They are designed for use with electromagnetic equipment and are available in Lockable, Push-Pull, and Momentary versions The body of these operators is constructed from die-cast zinc, ensuring durability and longevity The plungers have a mushroom shape and are made from DuPont Delrin 100ST Acetal, which enhances their impact resistance and features solid colors throughout.

These switches comply with Nema 12/13 and IP 65 standards, making them suitable for various applications.

Features and Benefits:

    •Available in Lockable, Push-Pull, and Momentary versions.

    •Hand operated control circuit devices.

    •Rated as Heavy Duty.

    •Constructed from die-cast zinc.

    •Mushroom shaped plungers made from DuPont Delrin 100ST Acetal for improved impact resistance.

    •Solid colors throughout plungers.

    •Nema 12/13 and IP 65 rated.

    •Gold Plated Contacts.

    •Each operator accepts up to three tiers.

Specifications:

 Body Material: Die-cast zinc
 Plunger Material: DuPont Delrin 100ST Acetal
 IP Rating: IP 65
 Nema Rating: Nema 12/13
 Contact Type: Gold Plated Contacts
