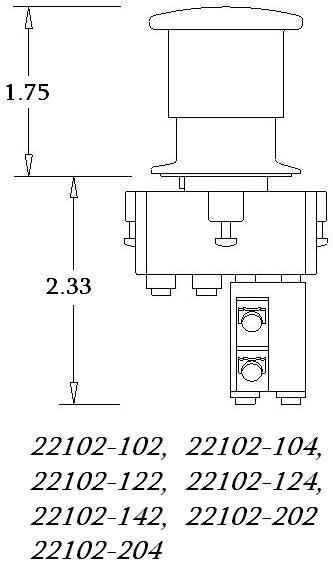

22102-204 22.5 mm Operators

22102-204 22.5 mm Operators

SKU: 22102204 Download PDF

Now $244.49
BEFORE   Now $244.49
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The 225 mm Operators are heavy-duty control circuit devices designed for use with electromagnetic equipment Available in Lockable, Push-Pull, and Momentary versions, these hand-operated switches boast robust features such as a body constructed from die-cast zinc and mushroom-shaped plungers made from DuPont Delrin 100ST Acetal for enhanced impact resistance The plungers are solid colors throughout The product complies with NEMA 12/13 and IP 65 standards, ensuring dust and water resistance.

Additionally, it includes gold-plated contacts, and each operator can support up to three tiers.

Features and Benefits:

    •Available in Lockable, Push-Pull, and Momentary versions.

    •Body made from die-cast zinc for durability.

    •Mushroom-shaped plungers molded from DuPont Delrin 100ST Acetal for improved impact resistance.

    •Complies with NEMA 12/13 and IP 65 standards for dust and water resistance.

    •Gold plated contacts for reliability.

    •Each operator accepts up to three tiers.

Specifications:

 Body Material Die-cast zinc
 Plunger Material DuPont Delrin 100ST Acetal
 Standards NEMA 12/13, IP 65
 Contact Type Gold Plated
 Tiers Supported Up to three tiers
