22102-012 22.5 mm Operators

22102-012 22.5 mm Operators

SKU: 22102012 Download PDF

Now $279.08
BEFORE   Now $279.08
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

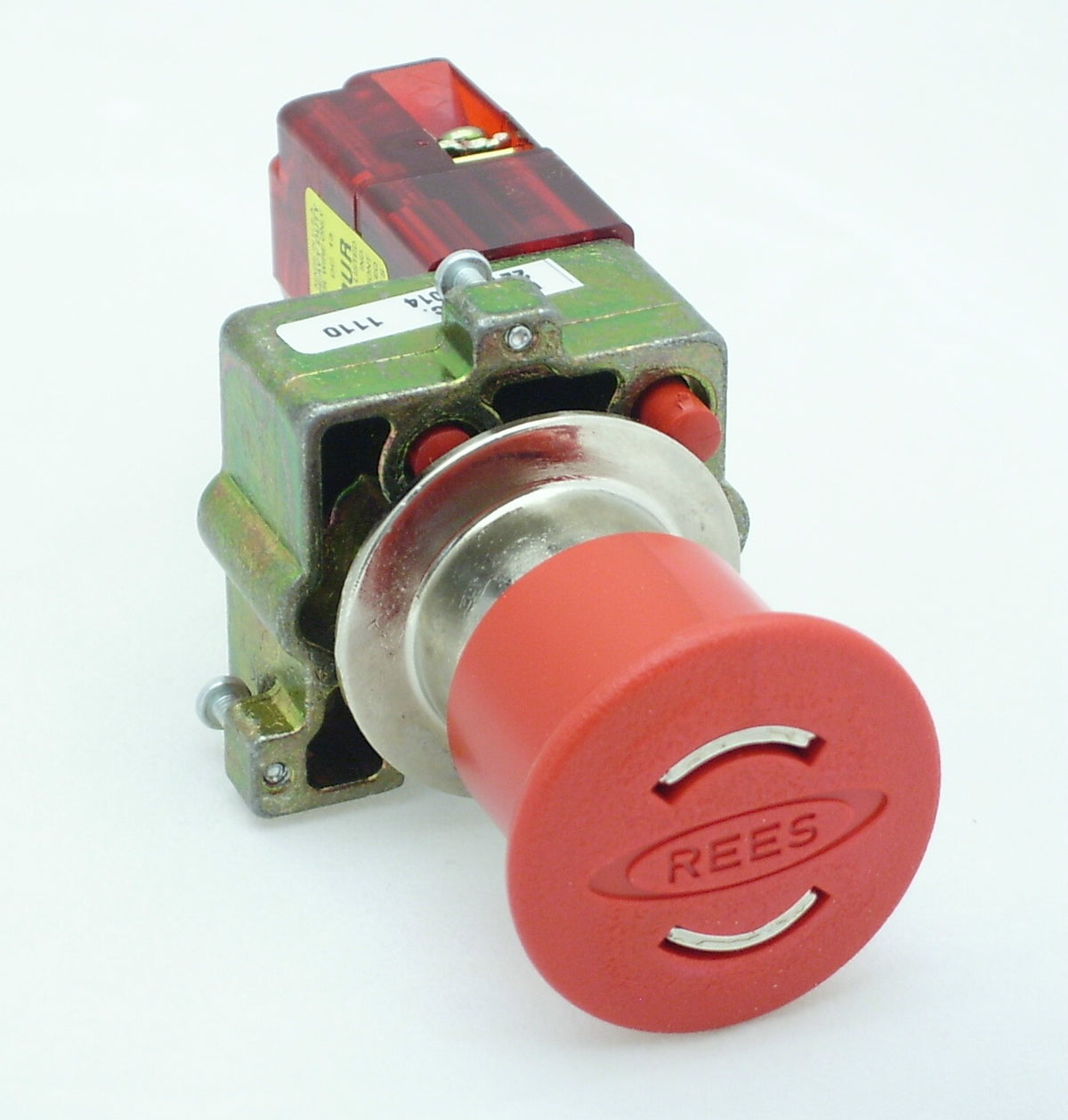

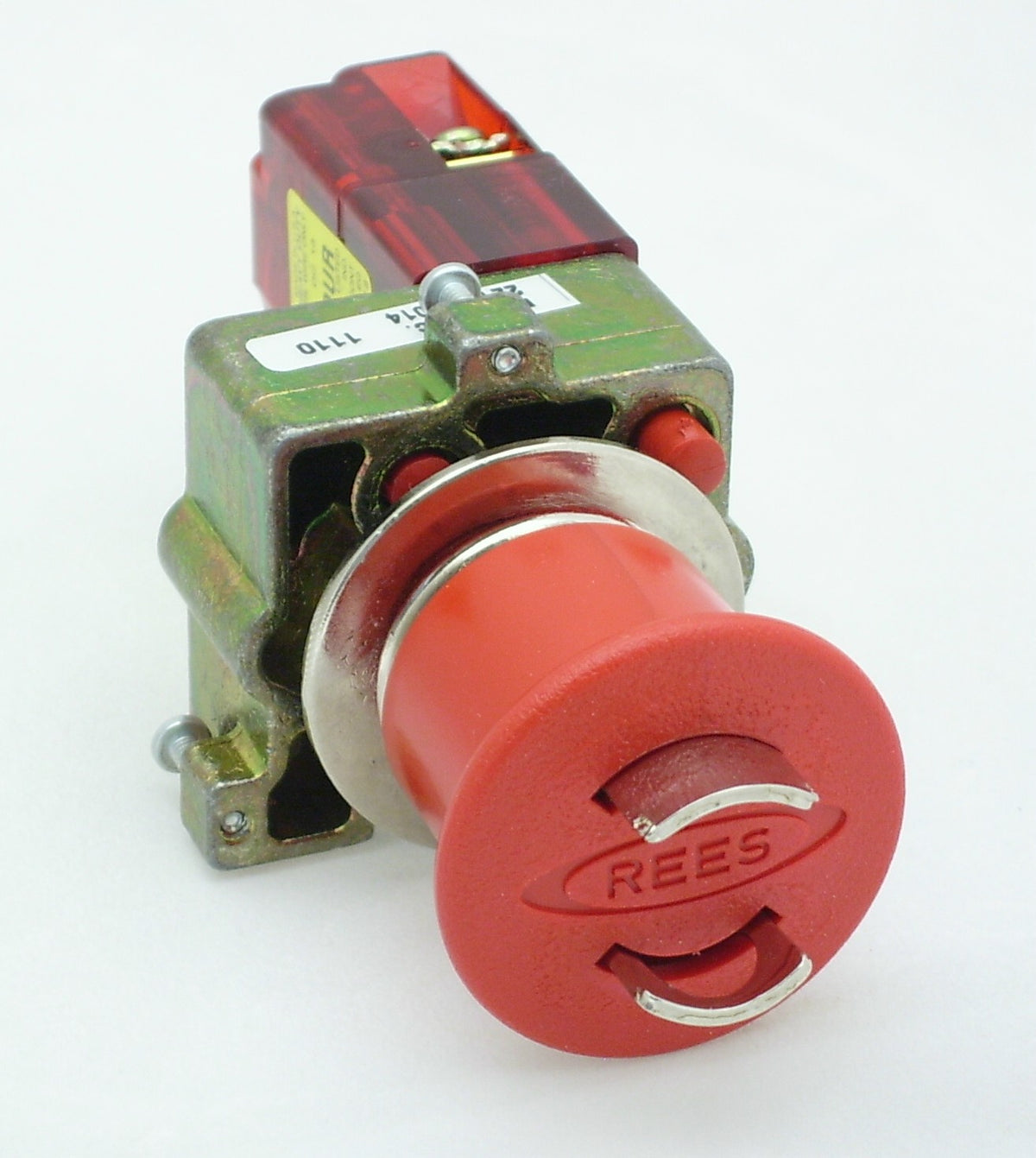

The 225 mm Operators are heavy-duty hand-operated control circuit devices designed for use with electromagnetic equipment These switches are available in lockable, push-pull, and momentary versions The body is constructed from die-cast zinc, ensuring durability The mushroom-shaped plungers are molded from DuPont Delrin 100ST Acetal, which provides enhanced impact resistance, and they feature solid colors throughout.

The switches meet the requirements of UL/NISD File E357870, Nema 12/13, and have an IP rating of 65, ensuring they are suitable for various applications Additionally, they utilize gold-plated contacts for improved reliability.

Features and Benefits:

    •Available in Lockable, Push-Pull, and Momentary versions.

    •Constructed from die-cast zinc for durability.

    •Mushroom-shaped plungers made from DuPont Delrin 100ST Acetal for improved impact resistance.

    •Solid colors throughout for aesthetic appeal.

    •Meets UL/NISD File E357870 standards.

    •Nema 12/13 compliant.

    •IP 65 rating for protection against dust and water ingress.

    •Utilizes gold-plated contacts for enhanced reliability.

Specifications:

 Body Material Die-cast zinc
 Plunger Material DuPont Delrin 100ST Acetal
 UL/NISD File E357870
 Nema Rating 12/13
 IP Rating 65
 Contacts Gold Plated
