201610 Enclosure, PC

201610 Enclosure, PC

SKU: UL TPC 201610 Download PDF

Now $5,196.00
BEFORE   Now $5,196.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

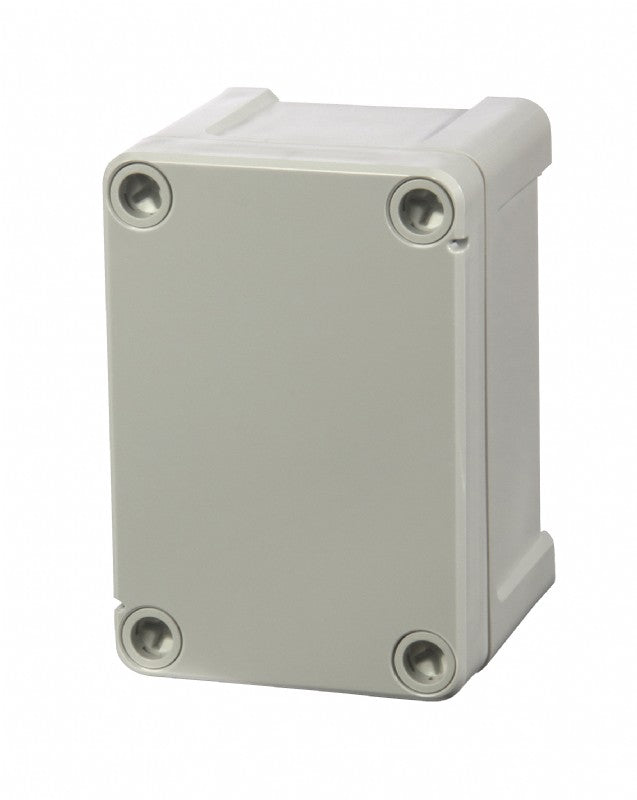

The product is an enclosure made of polycarbonate material with dimensions of 79 x 64 x 39 inches It features a grey cover and is designed to be used in various environments, offering ratings of UL/cUL Type 1, 4, & 4X The enclosure meets specific electrical insulation and UV resistance requirements It has an impact resistance rated IK07/IK08 and is not halogen-free The temperature range for continuous operation is -40 °F to 175 °F (-40 °C to 80 °C).

Features and Benefits:

    •Constructed from durable polycarbonate material.

    •Impact resistance rated IK07/IK08.

    •Designed for use in UL/cUL Type 1, 4, & 4X environments.

    •Operates effectively from -40 °F to 175 °F.

Specifications:

 Height (inch) 7.9
 Width (inch) 6.4
 Depth (inch) 3.9
 Height (mm) 201
 Width (mm) 163
 Depth (mm) 98
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature (continuous) °F -40 … 175
 Temperature (continuous) °C -40 … 80
 UL/cUL Type 1, 4, & 4X
 Impact Resistance (EN 62262) IK07/IK08
 Electrical insulation Totally insulated
 Halogen free (DIN/VDE 0472, Part 815) No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695) 960 °C
