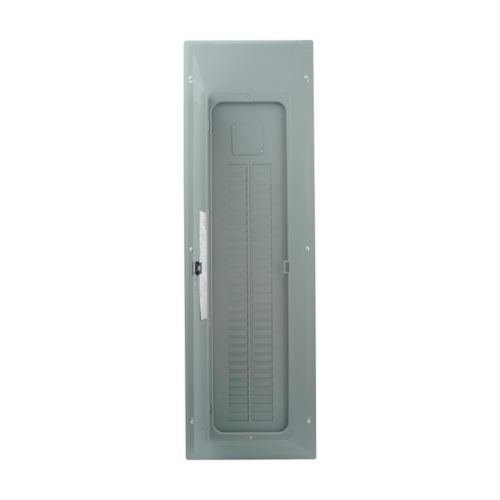

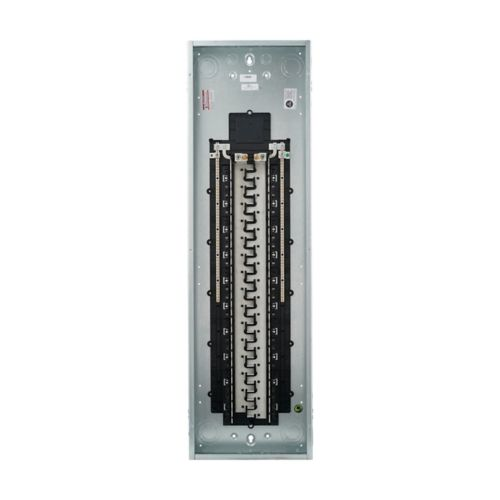

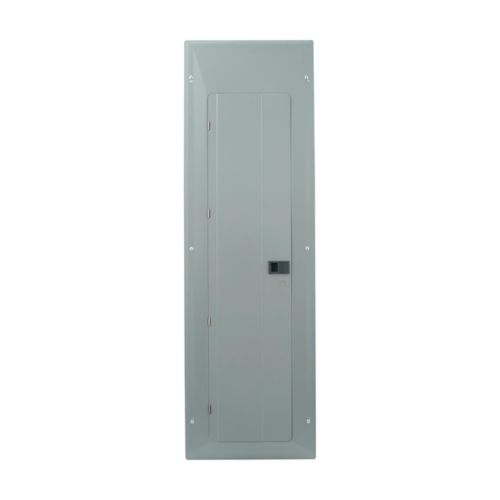

200A NEMA 1 Single Phase BR Convertible Loadcenter BRP60E200
200A NEMA 1 Single Phase BR Convertible Loadcenter BRP60E200
SKU: SKU: BRP60E200
Couldn't load pickup availability
About :
A Loadcenter (also known as a load center panel or breaker panel) is an electrical distribution device that houses circuit breakers or fuses. It is typically used to protect circuits from overcurrent conditions and provide a safe way to distribute electrical power to various parts of a building or facility. A well-maintained loadcenter ensures that the electrical distribution system operates efficiently and safely while providing reliable power to the building's electrical systems.
Also Known As :
Loadcenter, Electrical Panel, Breaker Panel, Circuit Breaker Panel, Breaker Box, Distribution Board, Fuse Box, Power Distribution Panel
Specification :
| Type |
Convertible, lugs installed
|
| Amperage Rating | 200 A |
| Bus material |
Aluminum
|
| Cover |
Cover included
|
| Main circuit breaker |
CSR
|
| Number of circuits |
120
|
| Number of poles |
Single-pole
|
| Number of spaces |
60
|
| Phase |
Single-phase
|
| Used with |
Type BR 1-inch breakers
|
| Voltage rating |
120/240 V
|
| Wire size |
#6-1/0 AWG Cu/Al
|
| Enclosure | NEMA 1 |
| Box size |
X10
|
| Enclosure material |
Metallic
|
| Number of wires |
Two hots, neutral and ground
|
| Product Length/Depth |
48 in
|
| Product Height |
3.88 in
|
| Product Width |
14.31 in
|
Features :
Loadcenters are commonly found in homes to distribute power to various areas like lighting, HVAC, kitchen appliances, and more.
Larger loadcenters can be used in commercial buildings to manage power distribution to different zones or departments.
In industrial settings, loadcenters may be used to handle heavy machinery and high-capacity circuits.
All electrical work should be done in accordance with local electrical codes and regulations to ensure safety and compliance.
