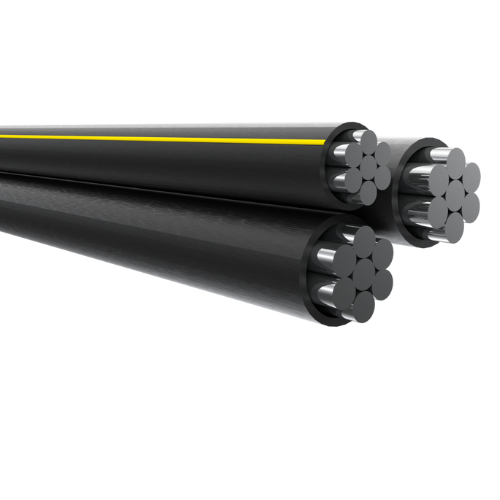

2-2-4 Stephens Triplex Aluminum Conductor Underground Direct Burial 600V URD

Allowable Ampacity for 2-2-4 Stephens Triplex Aluminum Conductor 600V URD direct burial: 165 Amps

Allowable Ampacity for 2-2-4 Stephens Triplex Aluminum Conductor 600V URD in duct: 120 Amps

Also Known As:

2-2-4 stephens aluminum urd cable, 2-2-4 stephens urd direct burial cable, 2-2-4 stephens three conductor cable, 2-2-4 stephens tri plex wire, 2-2-4 stephens triplex cable, 2-2-4 stephens triplex aluminum underground wire, 2-2-4 stephens 3 conductor power cable, 2-2-4 stephens aluminum triplex, 2-2-4 stephens underground triplex, 2-2-4 stephens triplex underground cable, 2-2-4 stephens triplex wire underground, 2-2-4 stephens direct burial triplex, 2-2-4 stephens triplex conductor, 2-2-4 stephens direct burial electrical cable, 2-2-4 stephens direct burial power cable, 2-2-4 stephens aluminum direct burial cable, 100 amp underground wire, 2 2 4 aluminum wire.

Conductors:

Aluminum conductors used for this cable are designed in either concentric strand or in compressed series. The advantage with a compressed conductor is the reduced bulkiness. Compressed conductors are also stronger and tougher; the stranded conductors are highly flexible and tend to have lower electrical resistance. Stranded conductors therefore reduce power loss and are also easier to use in applications where flexibility is vital. Aluminum 600 V URD cable has three aluminum conductors.

Insulation:

Versatile insulation system made of cross linked black polyethylene material helps to secure the cable conductors. This insulation is water tight, repulsive to corrosive substances, resistant to oil, heat and flame. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions like direct burial installation.
