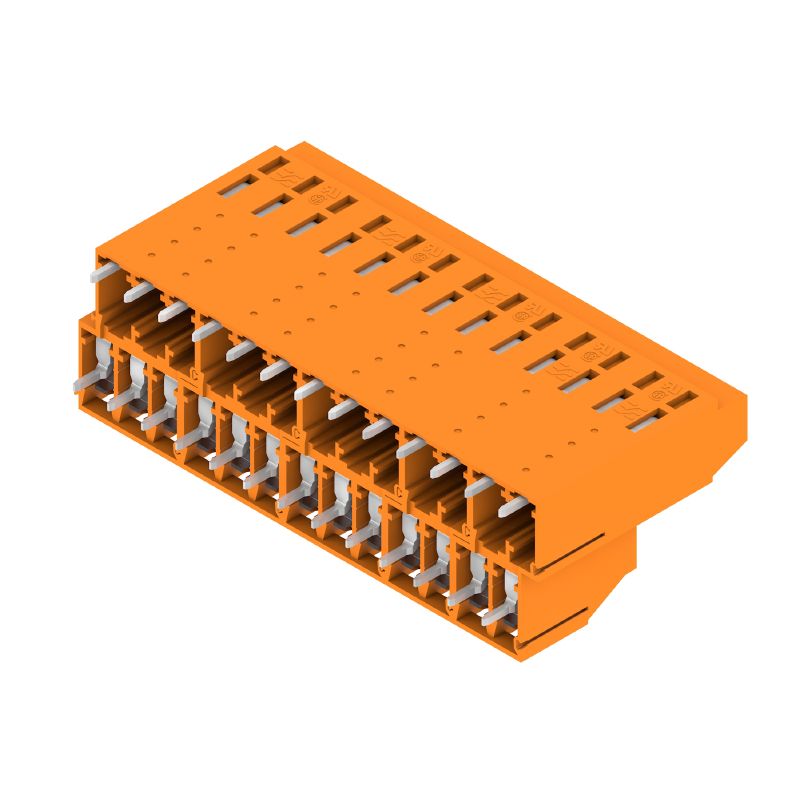

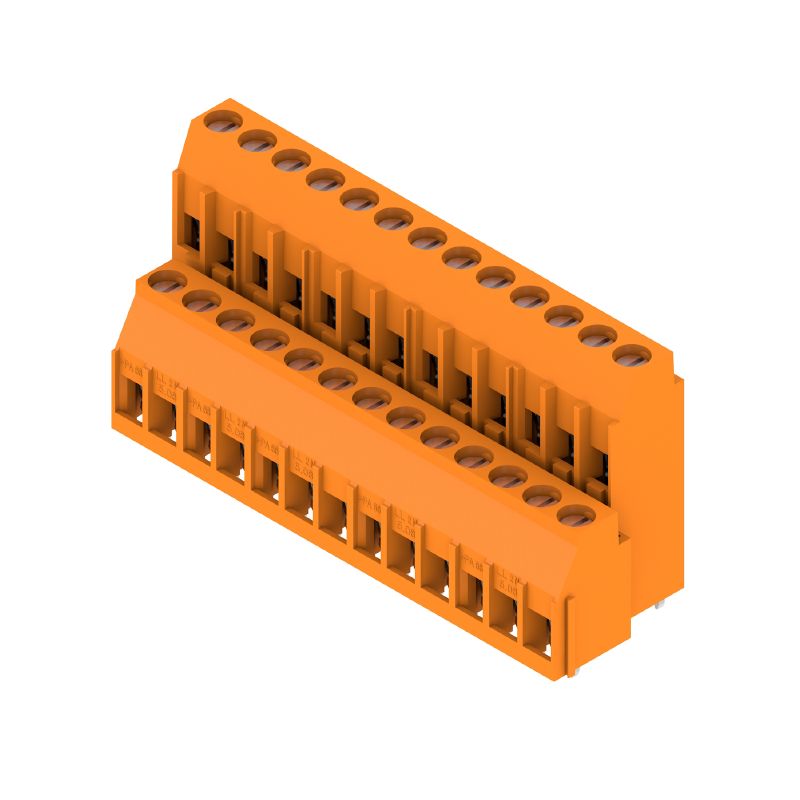

1977570000 - 5.08mm PCB Terminals, 26 Poles, 3.2mm Solder Pin, Orange (Pack of 10)
1977570000 - 5.08mm PCB Terminals, 26 Poles, 3.2mm Solder Pin, Orange (Pack of 10)
SKU: SKU: 1977570000 Download PDF
Couldn't load pickup availability
Description:
Introducing a premium 26-pole printed circuit board terminal, designed with a 508 mm pitch and angled at 90° Its solder pin measures 32 mm in length and features a durable tinned finish in an eye-catching orange color This terminal is equipped with a clamping yoke connection, allowing it to securely hold conductors with a maximum clamping capacity of 6 mm², making it a reliable choice for various electrical applications.
Features and Benefits:
•Clamping yoke connection method.
•WireReady property.
•Touch-safe protection according to DIN VDE.
•THT solder connection for mounting onto the PCB.
Specifications:
| Rated voltage (IEC) | 500 V / 32.5 A / 0.5 - 6 mm² |
| Rated voltage (UL) | 300 V / 20 A / AWG 26 - AWG 12 |

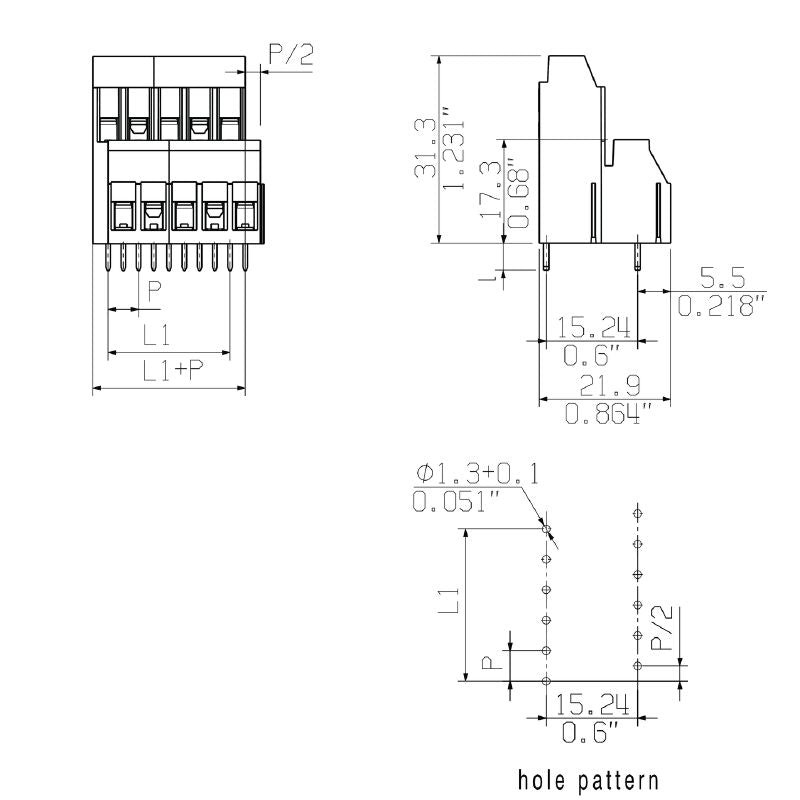

| Pitch in mm | 5.08 mm |
| Number of poles | 26 |
| Solder pin length | 3.2 mm |
| Protection degree | IP20 |
| Insulating material | Wemid (PA) |
| Color | orange |
| Operating temperature min | -50 °C |
| Operating temperature max | 120 °C |
