1967210000 - 12-Pole Male Connector, 20A, 830V, Tension-Clamp Design

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

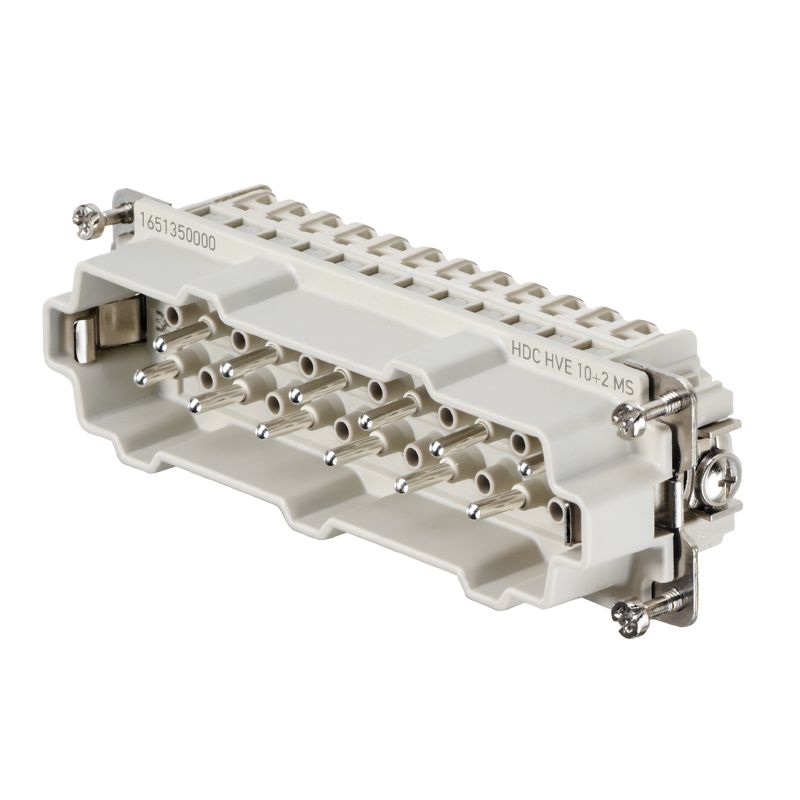

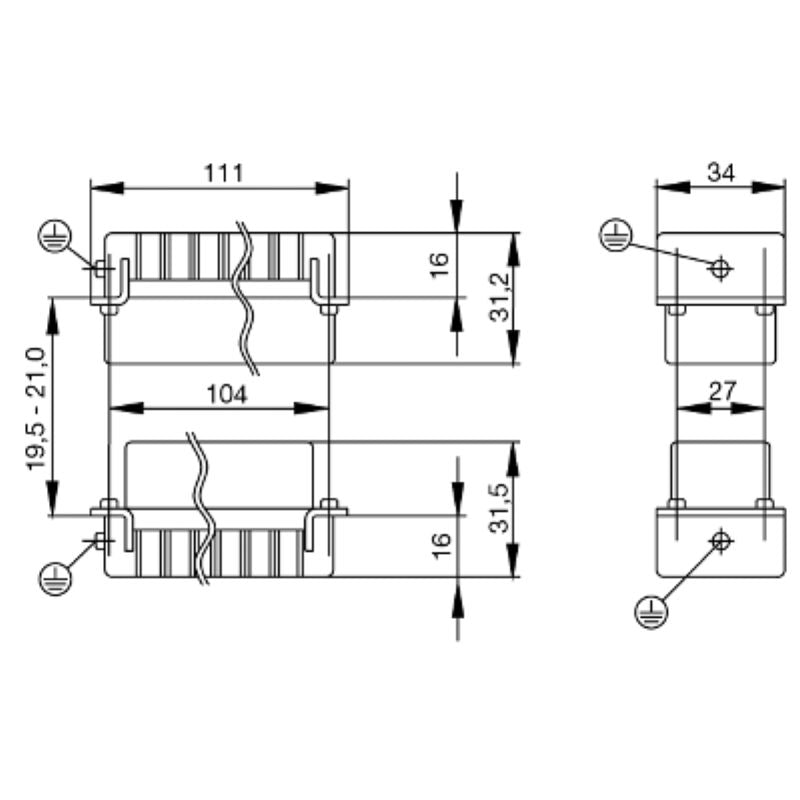

Introducing the HDC HVE 10+2 MT CTH, a robust male connector tailored for reliable connectivity across a wide range of applications This connector operates at 830 V and boasts a current rating of 20 A, featuring 12 poles for versatile use With a tension-clamp connection, it ensures a secure fit Measuring 111 mm deep, 335 mm high, and 34 mm wide, it is engineered from durable copper alloy, weighing in at 72.

16 g Designed with environmental standards in mind, it complies with RoHS and REACH regulations, and can endure temperature extremes ranging from -40 °C to 125 °C.

Features and Benefits:

•RoHS compliant.

•Chemical resistance to various substances including acetone and petrol.

•Low smoke production according to DIN EN 45545-2.

•Tension-clamp connection type.

•High plugging cycle durability of at least 500 cycles.

•Designed for outdoor use.
