1957694 - DREMOMETER MINI 1/4" Torque Wrench 2.5-12 Nm with Dual Scale
1957694 - DREMOMETER MINI 1/4" Torque Wrench 2.5-12 Nm with Dual Scale
SKU: SKU: 1957694
Couldn't load pickup availability
Description:

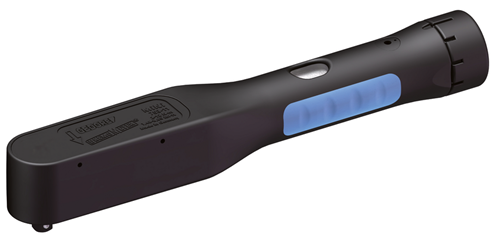

Introducing the DREMOMETER MINI Torque Wrench, featuring a 1/4" drive and a precision torque range of 25 to 12 Nm (225 to 106 lbf·in), making it ideal for a variety of industrial applications This tool adheres to the stringent DIN EN ISO 6789-2:2017 Type II Class A standards and is accompanied by a traceable test certificate, showcasing its calibration accuracy with a maximum deviation of just +/- 3%—better than the +/- 4% threshold specified by the standard.
The wrench is built with a durable, lightweight plastic casing made of high-grade glass-fibre reinforced polyamide, complemented by a soft-grip handle for enhanced usability It offers a dual scale with graduations at 05 Nm and features an additional micrometre scale for precise interim adjustments A convenient locking button ensures security in your torque settings, and the tool incorporates a magnifying-glass effect window for easy reading of measurements.
This torque wrench is your go-to solution for reliable screw tightening in any industrial setting.
Features and Benefits:
•Classified according to DIN EN ISO 6789-2:2017 Type II Class A.
•Traceable test certificate.
•Calibrated to a maximum permissible deviation of +/- 3%.
•Lightweight casing made of glass-fibre reinforced polyamide.
•Automatic short-path actuation with audible signal.
•Dual scale with scale graduation of 0.5 Nm and 5 lbf·in.
•Additional micrometre scale for interim values.
•Reliable locking button for torque setting.
•Controlled screw tightening.
•Assembly.
•Series assembly.
•Production.
•Maintenance and repair.
Specifications:

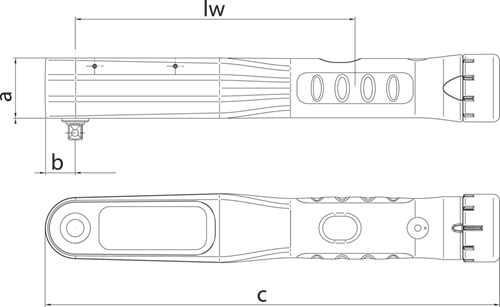

| Total width [mm] | 31.5 |
| Total height [mm] | 31.5 |
| Total length [mm] | 211 |
| Distance housing - square drive [mm] | 14.5 |
| Drive type/drive | Single square rigid |
| Drive connector square [metric] | 6.3 |
| Drive square inch | 1/4" |
| Tightening direction | Right |
| Trigger mechanism | Short path triggering |
| Torque (max.) [lbf·ft] | 106 |
| Torque (min.) [lbf·ft] | 22.5 |
| Torque (min.) [lbf·in] | 106 |
| Torque (max.) [lbf·in] | 22.5 |
| Torque (max.) [Nm] | 12 |
| Torque (min.) [Nm] | 2.5 |
| Calibration length [mm] | 130 |
| Width of head 1 [mm] | 28.5 |
| Head height 1 [mm] | 28 |
| Material | Glass fibre reinforced high-tech polyamide |
| Vernier Nm | 0.05 |
| Precision +/- | +/- 3% |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Graduation [lbf·in] | 5 |
| Scale division [Nm] | 5 |
