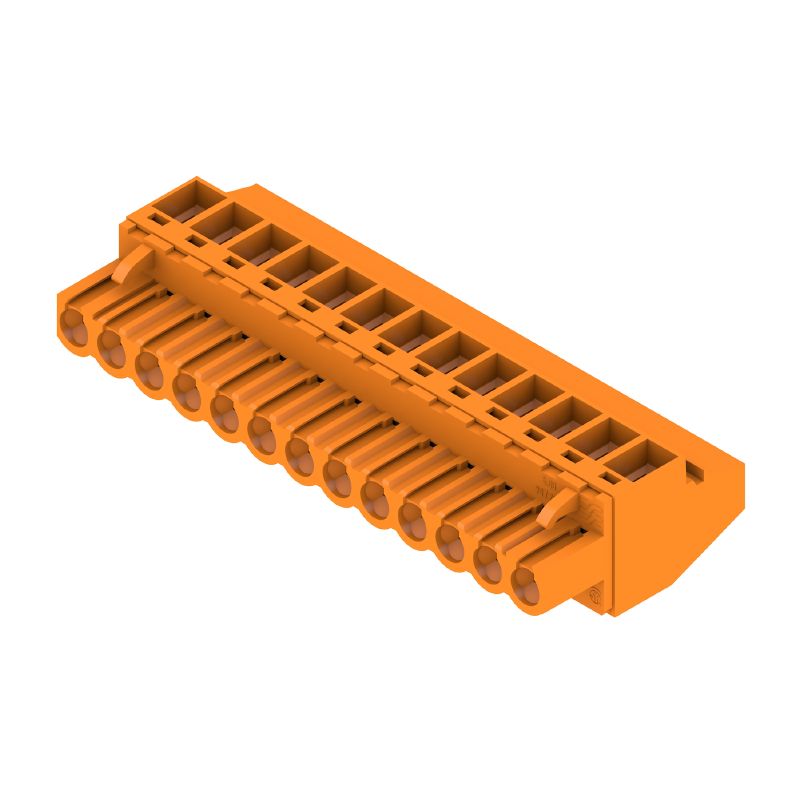

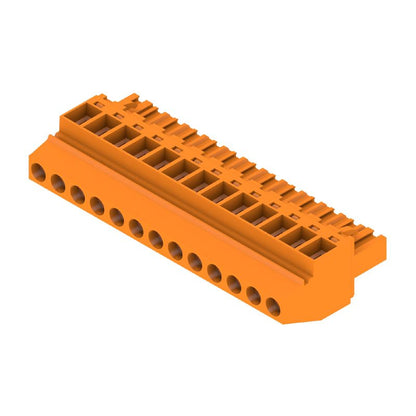

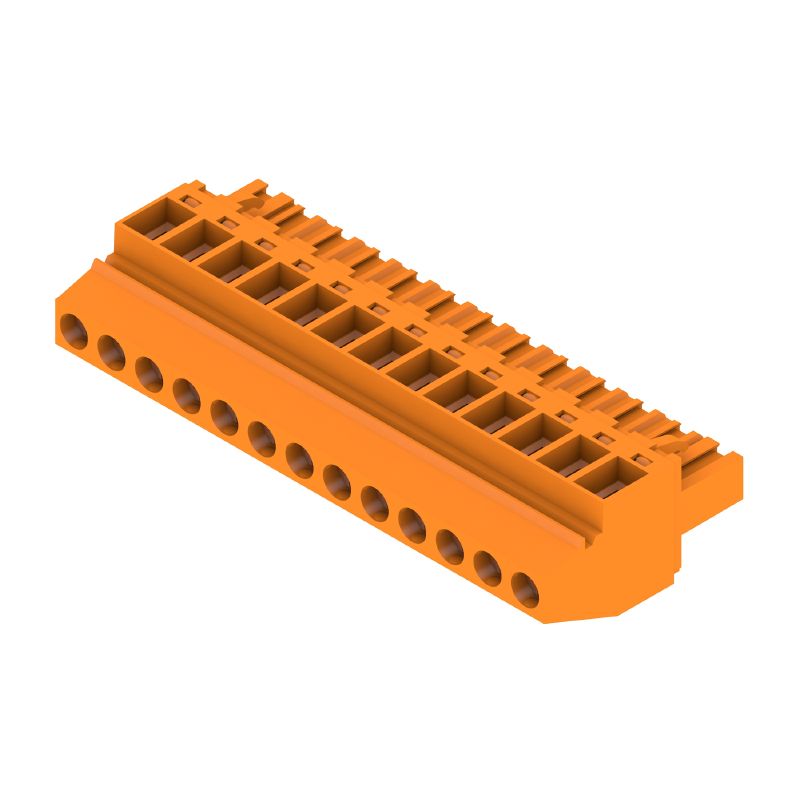

1948120000 - 5.08mm 13-Pole Female Connector with 90° Clamping Yoke (Pack of 24)
1948120000 - 5.08mm 13-Pole Female Connector with 90° Clamping Yoke (Pack of 24)
SKU: SKU: 1948120000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a versatile 508 mm female plug-in connector, equipped with 13 poles and a 90° clamping yoke connection This connector accommodates wire sizes of up to 4 mm², ensuring strong performance with a maximum voltage of 400 V at 23 A in accordance with IEC standards and 300 V at 20 A as per UL standards Packaged for convenience, this connector is ideal for a variety of field applications.
Features and Benefits:
•Clamping range for conductors up to 4 mm².
•Designed for field connections.
•Safe from finger touch protection.
•Durable construction with IP20 protection degree.
•Can be coded for non-interchangeability.
•Easy wire connection method with clamping yoke.
Specifications:
| Number of Poles | 13 |
| Pitch | 5.08 mm |
| Rated Cross-section | 4 mm² |
| Temperature Range | from -50 °C to 100 °C |
| Volume Resistance | ≤5 mΩ |
| Insulation Material | PBT |
| Protection Degree | IP20 |
| Operating Temperature | -50 °C to 100 °C |
| Storage Temperature | -40 °C to 70 °C |
