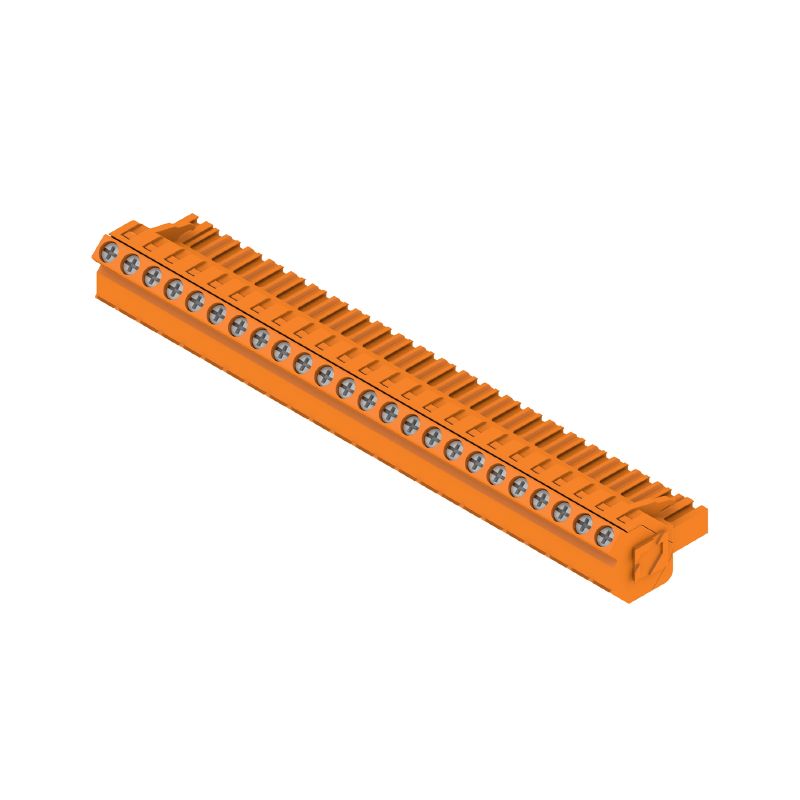

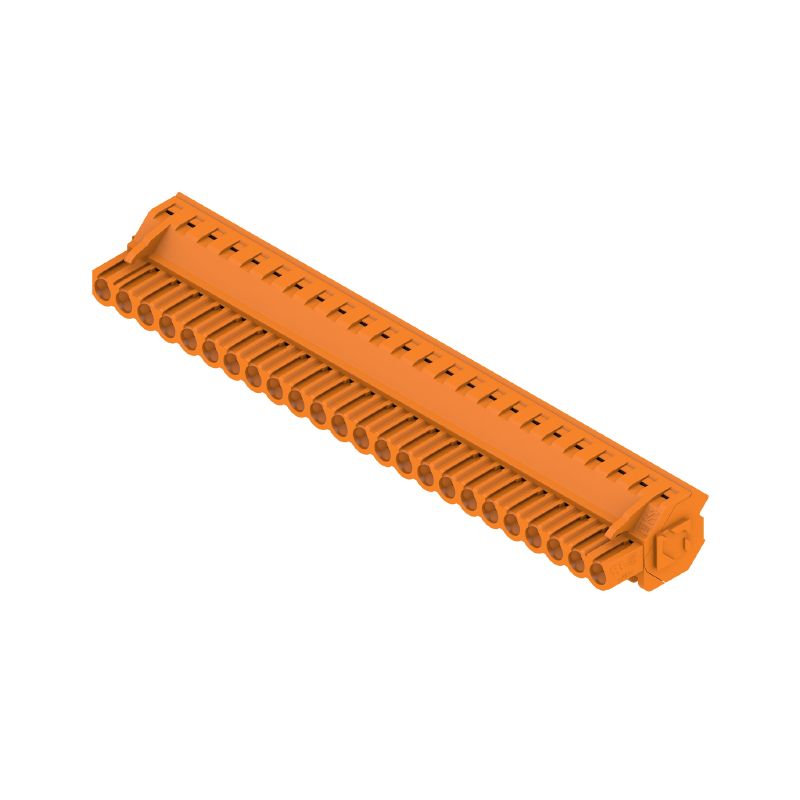

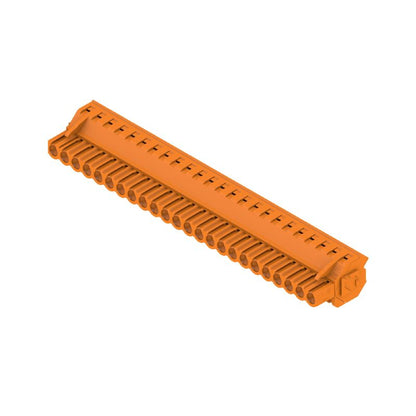

1945970000 - 5.08mm 24-Pole PCB Connector with Clamping Yoke (Pack of 12)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BLZP 508HC/24/225B SN OR BX, a reliable PCB plug-in connector tailored for female plugs with a 508 mm pitch and accommodating 24 poles This connector includes a clamping yoke for secure connections and meets RoHS and UL standards, ensuring safety and quality It features a maximum clamping range of 4 mm², making it suitable for various applications Packaged in a box for easy transport, it is ideal for field connections.

With a voltage rating of up to 400V and capable of handling currents up to 175A, this connector guarantees consistent performance and reliability in your electrical projects.

Features and Benefits:

•Field connection type.

•Clamping yoke connection method.

•Touch-safe protection according to DIN VDE standards.

•Compatible with various wire cross-sections including AWG 30 to AWG 12.

•Can be coded for secure connections.

•High-quality insulating material PBT.

•Available for use in a temperature range from -50°C to 100°C.

Specifications:
