191209 Enclosure, PC

191209 Enclosure, PC

SKU: UL TPC 191209   Download PDF

Qty:
Now $4,053.00   Web pricing policy
BEFORE   Now $4,053.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

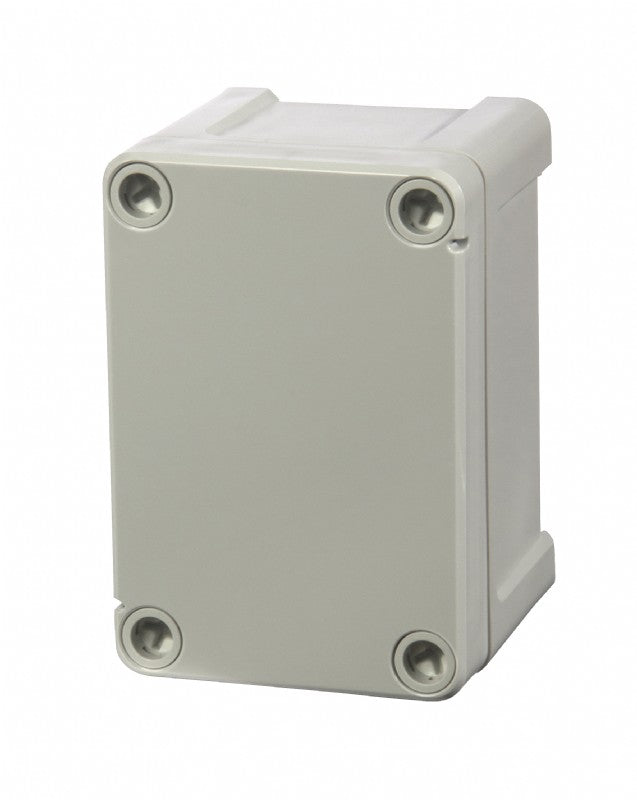

Enclosure, PC with Grey Cover Dimensions are 74 x 48 x 35 inches (187 x 122 x 90 mm) and is made of Polycarbonate material It features a UL/cUL Type rating of 1, 4, & 4X with impact resistance rated at IK07/IK08 The enclosure has a flammability rating of UL94-5VA (f1) and Cover: UL94-V0 (f1), and is totally insulated and halogen free as per DIN/VDE 0472, Part 815 Additionally, it has a glow wire test rating of 960 °C and provides UV resistance according to UL 508.

Features and Benefits:

    •Made of durable Polycarbonate material.

    •UL/cUL Type rating of 1, 4, & 4X.

    •Impact resistance rated at IK07/IK08.

    •Totally insulated for electrical safety.

    •Flammability rating of UL94-5VA (f1) and Cover: UL94-V0 (f1).

    •Glow wire test rating of 960 °C.

    •UV resistant.

Specifications:

 Dimensions (inch) 7.4 x 4.8 x 3.5
 Dimensions (mm) 187 x 122 x 90
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type 1, 4, & 4X
 Impact Resistance IK07/IK08
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test 960 °C
