1855610000 - WTR 2.5mm² Test-Disconnect Terminal, 24A, RoHS Approved (Pack of 100)

1855610000 - WTR 2.5mm² Test-Disconnect Terminal, 24A, RoHS Approved (Pack of 100)

SKU: SKU: 1855610000   Download PDF

Select a Variant:
  • 1855610000 - WTR 2.5mm² Test-Disconnect Terminal, 24A, RoHS Approved (Pack of 100)
Qty:
Regular price Now $418.71   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $418.71 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

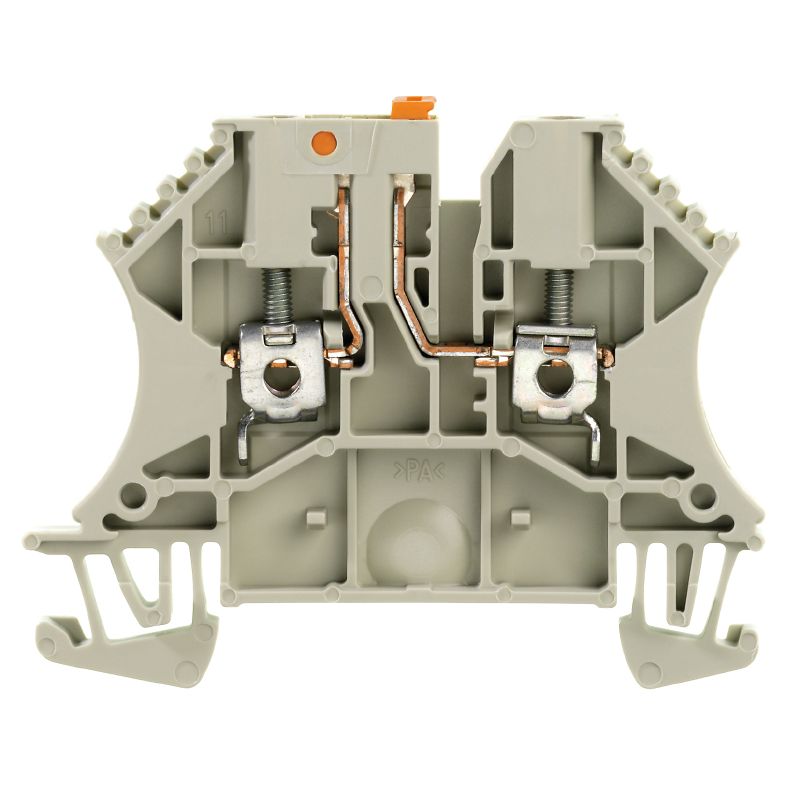

Optimize your electrical connections with the WTR 25 test-disconnect terminal This terminal features a sturdy screw connection and a sophisticated dark beige finish, making it both functional and aesthetically pleasing With a wire cross-section of 25 mm² and an ampacity of 24 A, it is suitable for various applications and can operate with voltages up to 500 V The design includes two connections and is configured for a single level, ensuring efficient performance.

It complies with RoHS standards and comes with a UL certification (number E60693), guaranteeing quality and safety in your installations.

Features and Benefits:

    •Dark beige color.

    •Compact design suitable for specific mounting rails.

    •RoHS compliant without exemption.

    •Stable operating temperature range.

Specifications:

 Depth 48 mm
 Height 60 mm
 Width 5.1 mm
 Storage temperature -25 °C...55 °C
 Ambient temperature -5 °C…40 °C
 Continuous operating temp., min. -50 °C
 Continuous operating temp., max. 120 °C
 Max. voltage (IECEX) 500 V
 Current (IECEX) 21 A
 Wire cross section max. (IECEX) 2.5 mm²
 Rated voltage 500 V
 Nominal current 24 A
 Rated cross-section 2.5 mm²
 Volume resistance according to IEC 60947-7-x 1.33 mΩ
 Rated impulse withstand voltage 6 kV
 Power loss in accordance with IEC 60947-7-x 0.77 W
 Current size C (CSA) 10 A
 Wire connection cross section AWG, max. AWG 12
 Wire connection cross section AWG, min. AWG 30
