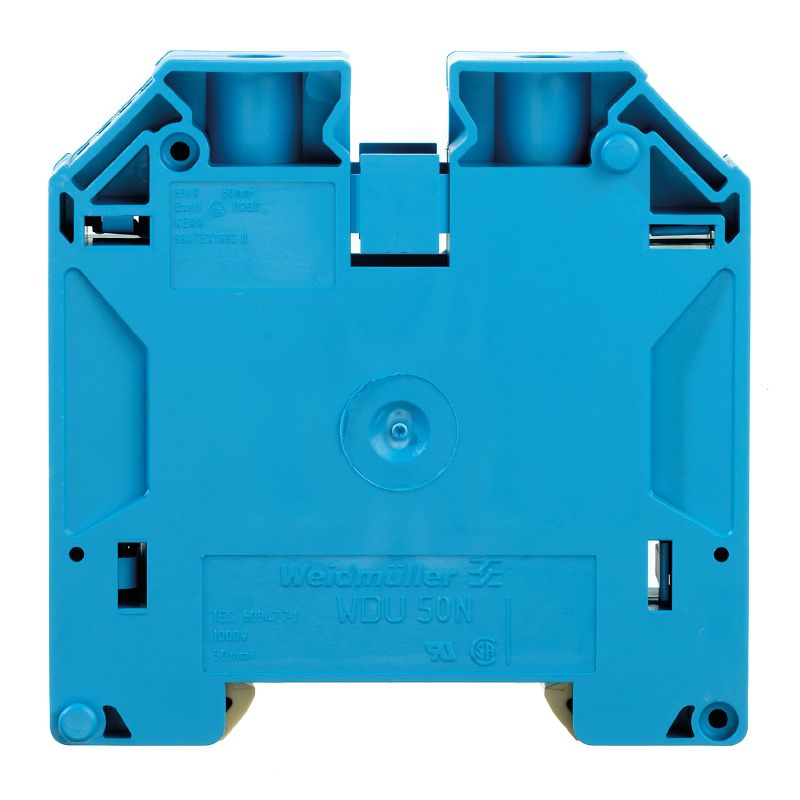

1820850000 - 50mm² Screw Feed-Through Terminal Block, 150A, 1000V (Pack of 10)

1820850000 - 50mm² Screw Feed-Through Terminal Block, 150A, 1000V (Pack of 10)

SKU: SKU: 1820850000   Download PDF

Select a Variant:
  • 1820850000 - 50mm² Screw Feed-Through Terminal Block, 150A, 1000V (Pack of 10)
Qty:
Regular price Now $159.29   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $159.29 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a robust feed-through terminal block designed for reliable performance, featuring a secure screw connection With a cross-sectional area capacity of 50 mm², this terminal block operates efficiently at a rated current of 150 A and a voltage of 1000 V Its thoughtful design allows for two separate connections, making it a practical solution for various applications.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Direct mounting installation advice.

    •Closed open sides.

    •Screw connection for rated connections.

Specifications:

 Depth 69.6 mm
 Height 70 mm
 Width 18.5 mm
 Storage temperature -25 °C...55 °C
 Ambient temperature -5 °C…40 °C
 Continuous operating temp., min. -60 °C
 Continuous operating temp., max. 130 °C
 UL 94 flammability rating V-0
 Rated voltage 1000 V
 Rated current 150 A
 Rated cross-section 50 mm²
 Volume resistance according to IEC 60947-7-x 0.21 mΩ
 Rated impulse withstand voltage 8 kV
 Surge voltage category III
 Number of connections 2
 Wire connection cross section, finely stranded, max. 50 mm²
 Wire connection cross section, finely stranded, min. 10 mm²
