18100 - 22x24mm UD Profile Ring Spanner, Chrome-Plated Vanadium Steel
18100 - 22x24mm UD Profile Ring Spanner, Chrome-Plated Vanadium Steel
SKU: SKU: 18100
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a versatile double-ended ring spanner crafted to meet precise engineering standards, including DIN 838, ISO 3318, ISO 1085, and ISO 10104 This tool boasts a specialized UD profile with a deep offset configuration, designed from high-quality vanadium steel (31CrV3) and finished with a chrome plating for enhanced durability The spanner features a satin finish that reduces glare, ensuring ease of use under various lighting conditions.
Engineered through meticulous forging and professional machining, its thin-walled rings provide a 5° deep offset to facilitate gentle force transmission, making it particularly useful for tackling recessed or deeply seated bolts The robust design excels with high bending strength, minimizing the risk of breakage or splintering under load Additionally, any overload is visibly indicated through deformation, enhancing safety during use.
This spanner is an essential addition to your toolkit, offering reliability and efficiency for heavy-duty tasks.
Features and Benefits:
•Constructed from vanadium steel 31CrV3.
•Chrome-plated surface for durability.
•Deep offset rings for ease of use on deep bolts.
•High bending strength and reliability under load.
•Top-grade industrial quality for continuous use.

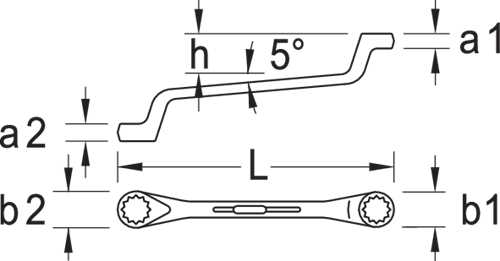

Specifications:
| Total width [mm] | 35 mm |
| Total height [mm] | 38 mm |
| Total length [mm] | 320 mm |
| Net weight [kg] | 0.412 kg |
| Version | Rings deep offset, strong but thin walls |
| Standard | DIN 838 ISO 3310 ISO 1085 ISO 10104 |
| Width of head 1 [mm] | 32.8 mm |
| Width of head 2 [mm] | 35.7 mm |
| Head height 1 [mm] | 14.3 mm |
| Head height 2 [mm] | 14.4 mm |
| Height of offset 1 | 33 mm |
| Material | 31CrV3 |
| Surface | chrome-plated |
| Compliance | compliant |
| Ring profile | UNIT-DRIVE |
| Ring offset | 5° |
| Width across flats 1 [mm] | 22 |
| Width across flats 2 [mm] | 24 |
| Width across flats [mm] | 22x24 |
