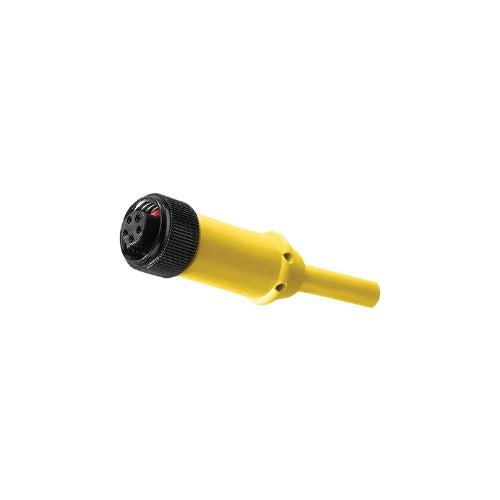

18 AWG Zinc Five Pole Internal Thread Passive Dual Key AM5C3MG120F
18 AWG Zinc Five Pole Internal Thread Passive Dual Key AM5C3MG120F
SKU: SKU: AM5C3MG120F Download PDF
Couldn't load pickup availability
About:
• The 18 AWG Zinc Five Pole Internal Thread Passive Dual Key is a robust and versatile connector designed for secure and reliable electrical connections.
• Constructed from high-quality zinc, it offers excellent durability, corrosion resistance, and mechanical stability, making it suitable for industrial and commercial applications. The five-pole design supports multi-signal or multi-circuit wiring, while the internal thread ensures a secure, vibration-resistant connection.
• Its dual-key mechanism guarantees precise alignment during installation and prevents mismating, enhancing both safety and ease of use. Compatible with 18 AWG wires, this connector is ideal for low to moderate power transmission and signal applications. Its passive operation requires no external power source, simplifying integration into systems.
Also Known As:
Zinc 5-Pole Connector, 5-Pin Threaded Connector, Dual-Key Electrical Coupler, Passive 5-Pole Zinc Connector, Internal Thread Multi-Pole Connector, 18 AWG Dual-Key Coupler, Five-Pole Zinc Electrical Connector.
Specification:
| Product Type |
|
| Material | Zinc |
| Number Of Poles |
Five-pole |
| Key type |
Dual key |
| Length/Depth |
2.19 in |
| Height |
0.64 in |
| Width |
0.64 in |
| Part No. | AM5C3MG120F |
Features:
• Durable zinc material offers excellent mechanical strength and resistance to moderate corrosion.
• Ideal for applications requiring lightweight yet sturdy components.
• Supports 18 AWG wire, enabling efficient power or signal transmission for higher current capacity than thinner gauges.
• Provides five distinct connection points for handling multiple signals or power lines in a single connector.
• Dual-key design ensures proper alignment during installation and prevents mismating.
• Enhances operational reliability by minimizing installation errors.
• Space-saving form factor suitable for tight installations or compact system designs.
• Easy to handle and integrate into existing wiring setups.
• Capable of operating reliably within standard temperature ranges for electrical components.
• Suitable for moderately demanding environments.
• Simple installation with secure threading and intuitive keying system.
Reduces assembly time and minimizes the risk of connection errors.
