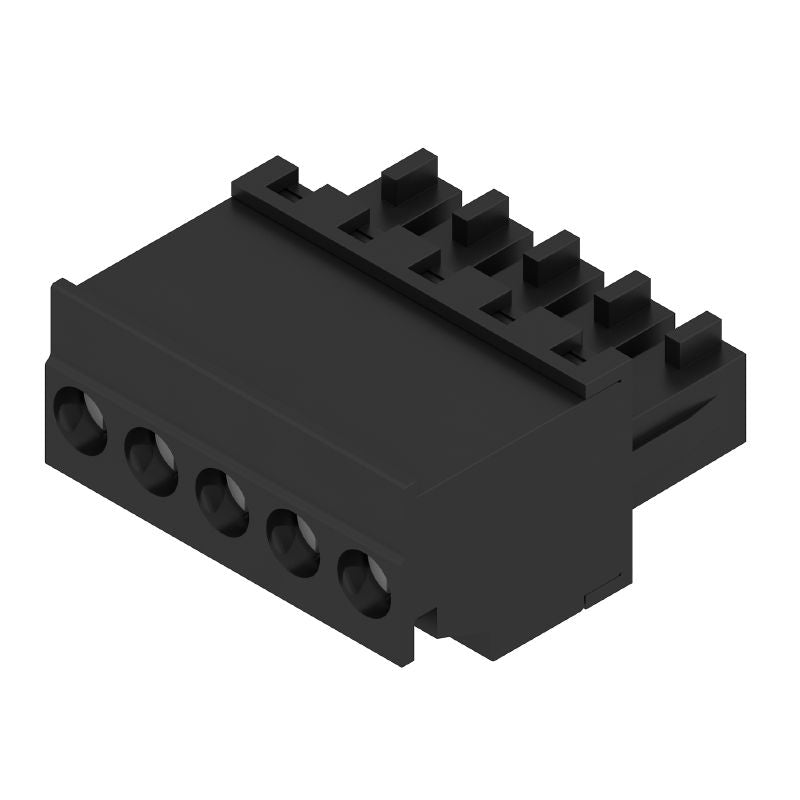

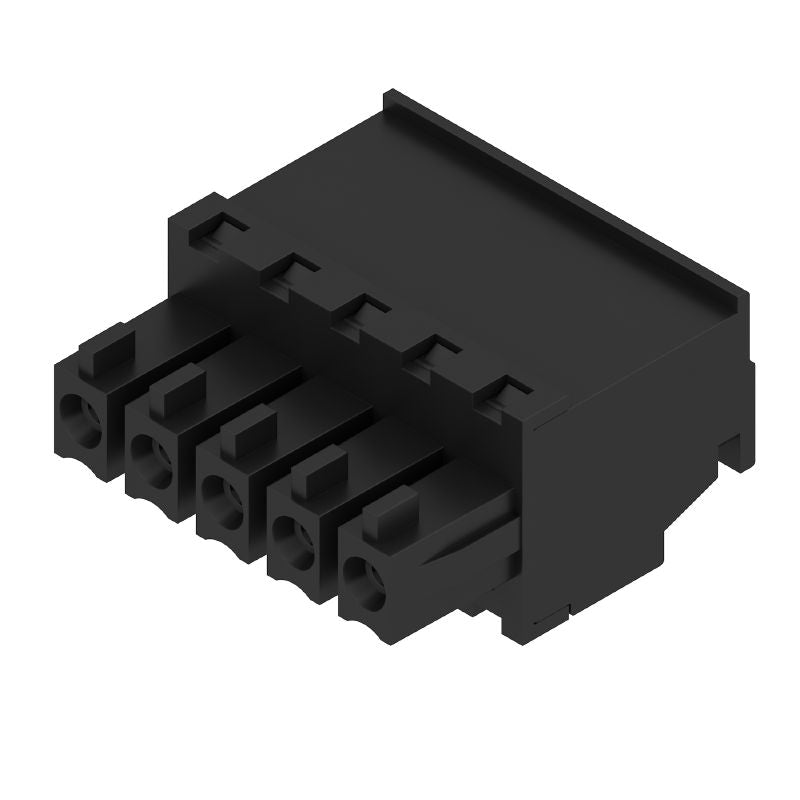

1798960000 - 5-Pole 3.81mm Female PCB Connector with Clamping Yoke (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BCZ 381/05/270 SN BK BX, a reliable female plug PCB connector designed with a 381 mm pitch and 5 poles This connector features a robust clamping yoke connection, capable of accommodating wires with a maximum clamping range of 15 mm² Each assembly comes neatly packaged in a box that complies with RoHS regulations and meets UL certification standards It has undergone rigorous testing for durability, ensuring it’s resilient against misengagement and non-interchangeability.

Additionally, you'll find that it holds both UL and CSA approval certifications, complete with an associated file number for assurance.

Features and Benefits:

•Clamping range of maximum 1.5 mm².

•Safe from finger touch according to DIN VDE 57 106.

•Touch-safe protection for plugged and unplugged positions.

•Can be coded for secure connections.

•Available in black color conforming to RAL 9011.

Specifications:
