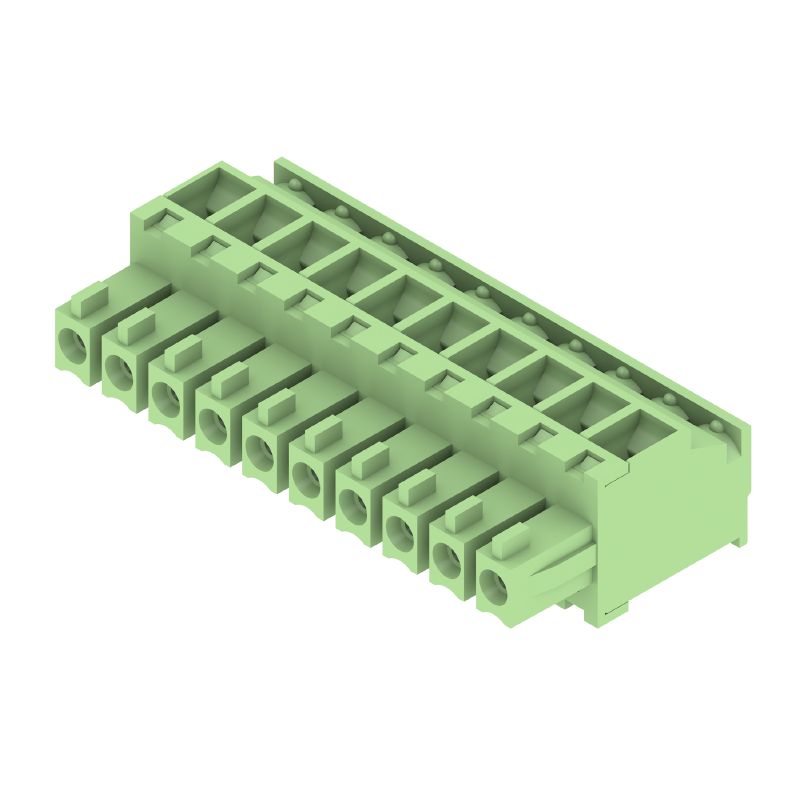

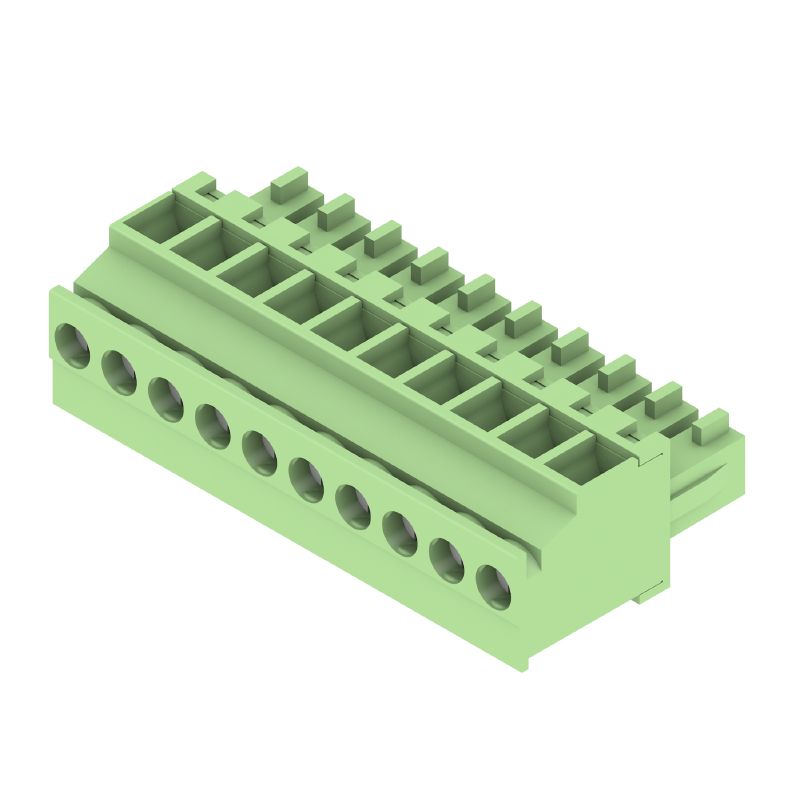

1798750000 - 3.81mm 10-Pole PCB Connector with Clamping Yoke (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable female plug-in PCB connector, featuring a compact 381 mm pitch and accommodating 10 connection poles This connector is designed with a clamping yoke connection, providing a robust clamping capacity for wires up to 15 mm² It meets RoHS compliance standards and comes conveniently packaged in a box Capable of handling IEC ratings of 320 V and 175 A for wire sizes ranging from 02 to 1.

5 mm², it also complies with UL ratings of 300 V and 10 A suitable for AWG 28 to AWG 16.

Features and Benefits:

•Compliant with RoHS regulations.

•Single-row configuration with 10 poles.

•Suitable for fine-wired conductors.

•Safe from finger touch (IP20 plugged/IP10 unplugged).

•Can be coded for unique identification.

•Plugging cycles rated at 25.

Specifications:
