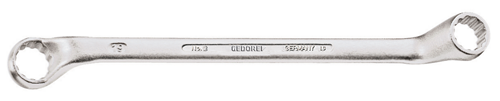

15860 - 9x11mm UD-Profile Deep Offset Spanner, Vanadium Steel
15860 - 9x11mm UD-Profile Deep Offset Spanner, Vanadium Steel
SKU: SKU: 15860
Couldn't load pickup availability
Description:
Introducing a premium deep offset ring crafted to meet DIN 838, ISO 3318, ISO 1085, and ISO 10104 standards Made from durable vanadium steel (31CrV3) and featuring a chrome-plated, satin non-glare finish, this ring is designed with both strength and precision in mind Its thin walls and 5° deep offset profile allow for an effective force transfer while maintaining high bending strength, preventing fractures and splinters under load, thus enhancing user safety.
Deformation serves as an indicator of overloading, making it suitable for use with extremely deep or recessed bolts Built for rigorous industrial applications, this ring ensures top-notch quality for demanding environments.
Features and Benefits:
•Rings deep offset, strong but thin walls.
•High bending strength - does not fracture or splinter when overloaded.
•Satin non-glare finish.
•Top-grade industrial quality for the hardest of continuous use.

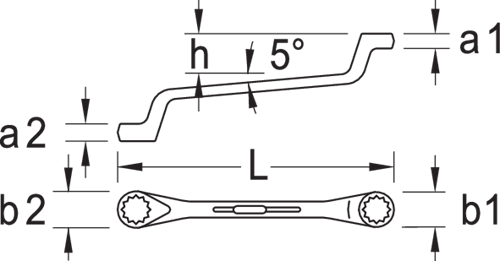

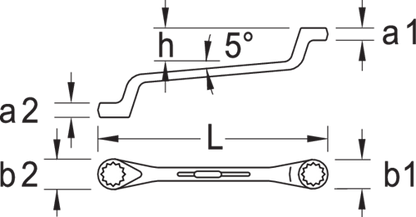

Specifications:
| Total width [mm] | 18 mm |
| Total height [mm] | 26 mm |
| Total length [mm] | 205 mm |
| Version | Rings deep offset, strong but thin walls |
| Width of head 1 [mm] | 14.4 mm |
| Width of head 2 [mm] | 17.5 mm |
| Head height 1 [mm] | 7.6 mm |
| Head height 2 [mm] | 9.5 mm |
| Height of offset 1 | 23.6 mm |
| Material | 31CrV3 |
| Surface | chrome-plated |
| Compliance | compliant |
| Ring profile | UNIT-DRIVE |
| Ring offset | 5° |
| Width across flats 1 [mm] | 9 |
| Width across flats 2 [mm] | 11 |
| Width across flats [mm] | 9x11 |
