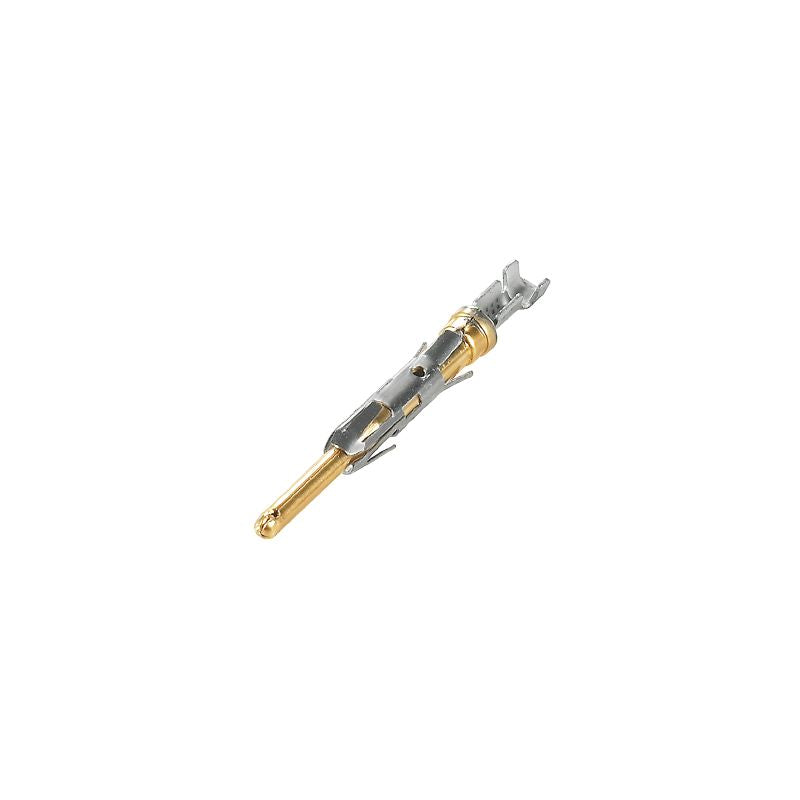

1582390000 - RoHS Crimp PCB Connector with 2.5 mm² Clamping Range (Pack of 250)
1582390000 - RoHS Crimp PCB Connector with 2.5 mm² Clamping Range (Pack of 250)
SKU: SKU: 1582390000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing our reliable PCB plug-in connector, equipped with crimp contacts and individual pins, which accommodates a clamping range of up to 25 mm² This RoHS-compliant component comes neatly packaged in a box and weighs just 056 grams
Engineered for optimal performance, this connector features a 180-degree conductor outlet direction and a single pole that includes one pin per series The volume resistance is rated at 3.
30 mΩ, ensuring efficient connectivity For installation, the required stripping length is 4 mm, and the contact material is a durable copper alloy with a tinned surface
Designed to withstand a wide temperature range, this connector operates effectively in environments from -50 °C to 100 °C, making it a versatile choice for various applications.
Features and Benefits:
•RoHS compliant without exemption.
•Developed per international standards and norms.
•Long pins can be used alongside standard pins as leading contacts.
•Suitable for long-term storage with an average temperature of 50 °C and maximum humidity of 70% for up to 36 months.
Specifications:
| Wire connection method | Crimp connection |
| Conductor outlet direction | 180° |
| Number of poles | 1 |
| Pin series quantity | 1 |
| Volume resistance | 3.30 mΩ |
| Stripping length | 4 mm |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Clamping range, min. | 15 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, min. | AWG 14 |
| Wire connection cross section AWG, max. | AWG 12 |
| Stranded, min. H07V-R | 1.5 mm² |
| Stranded, max. H07V-R | 2.5 mm² |
| Flexible, min. H05(07) V-K | 1.5 mm² |
| Flexible, max. H05(07) V-K | 2.5 mm² |
| Outer diameter of insulation, min. | 2.8 mm |
| Outer diameter of insulation, max. | 4.2 mm |
| tested acc. to standard | IEC 60664-1, IEC 61984 |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 0 kV |
