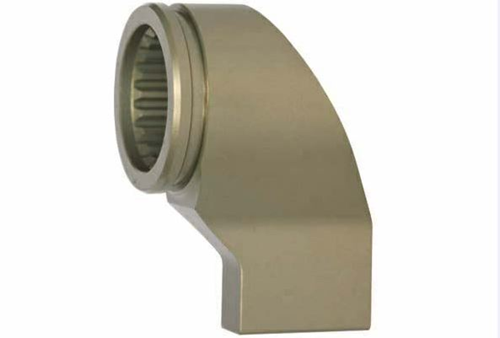

15625 - Inclined Reaction Arm S(LM) for LDH-100V Type
15625 - Inclined Reaction Arm S(LM) for LDH-100V Type
SKU: SKU: 15625
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the inclined design Reaction Arm S(LM), specifically crafted for the LDH-100V model This component offers optimal performance and stability, making it a reliable choice for your needs Enhance your setup with this expertly designed arm that ensures functionality and precision.
Specifications:
| Total width [mm] | 25 mm |
| Total height [mm] | 182 mm |
| Contents (Qty of pieces) | 1 |
| Distance from start of reaction arm to start of support surface [mm] | 65 mm |
| Distance from start of reaction arm to end of support surface [mm] | 164 mm |
| Distance from start of reaction arm to end of unit [mm] | 67 mm |
| Diameter 1 [mm] | 104 |
| Diameter 2 [mm] | 81 |
| Compliance | compliant |
