1560670000 - Blue 25mm² Screw Connection Terminal, 130°C Rated (Pack of 5)

1560670000 - Blue 25mm² Screw Connection Terminal, 130°C Rated (Pack of 5)

SKU: SKU: 1560670000   Download PDF

Select a Variant:
  • 1560670000 - Blue 25mm² Screw Connection Terminal, 130°C Rated (Pack of 5)
Qty:
Regular price Now $23.62   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $23.62 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the WPD 101 2X25/2X16 BL, a reliable component featuring a robust screw connection and a stylish blue hue This terminal boasts a cross-section rated at 25 mm² and can withstand continuous temperatures of up to 130 °C It meets RoHS standards and carries the UL certification number E60693 Featuring four connection points, this terminal operates efficiently within a temperature range of -5 °C to 40 °C.

Constructed from durable Wemid material, it weighs a sturdy 68 g, ensuring both functionality and quality.

Features and Benefits:

    •Screw connection terminal with a maximum connection cross-section of 25 mm².

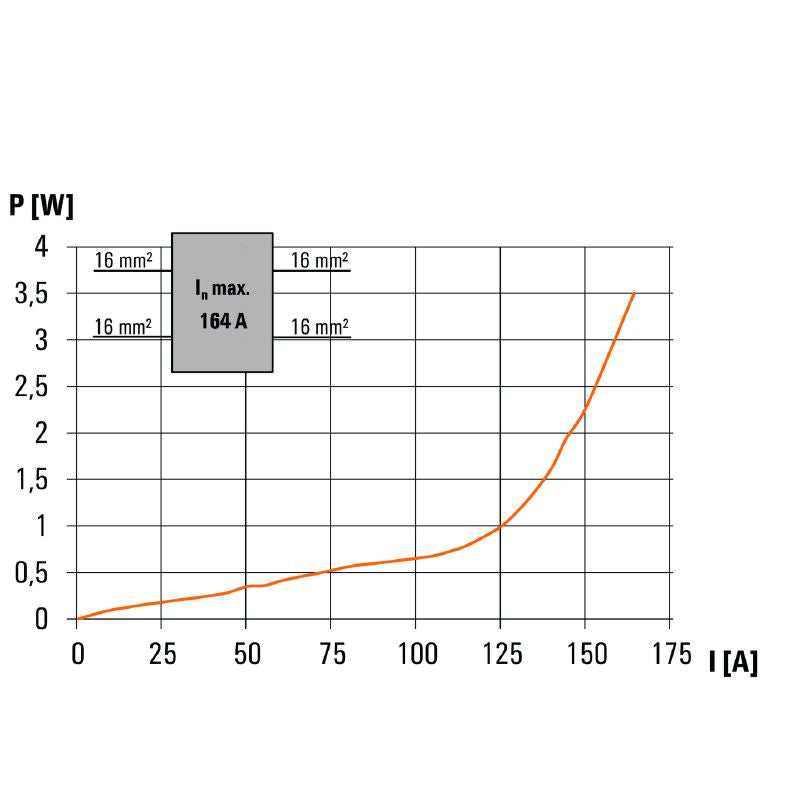

    •Capable of withstanding a maximum of 152 A at a rated voltage of 1,000 V.

    •Explosion-tested version available for enhanced safety.

    •Mounting rail type TS 35 is utilized for installation.

Specifications:

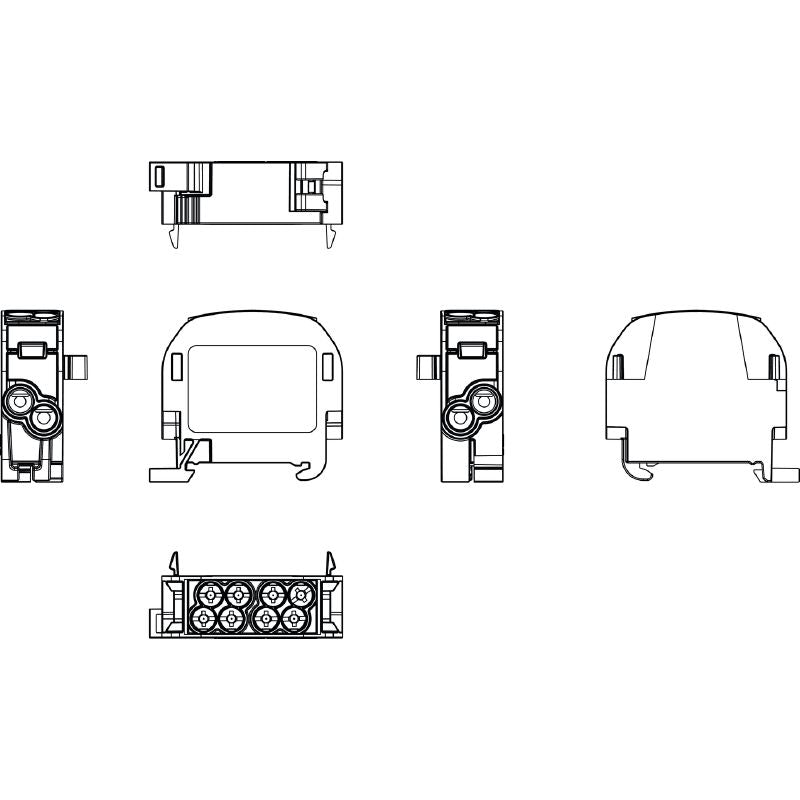

 Depth 49.3 mm
 Height 55.7 mm
 Width 17.8 mm
 Storage temperature -25 °C...55 °C
 Ambient temperature -5 °C…40 °C
 Continuous operating temp., min -50 °C
 Continuous operating temp., max 130 °C

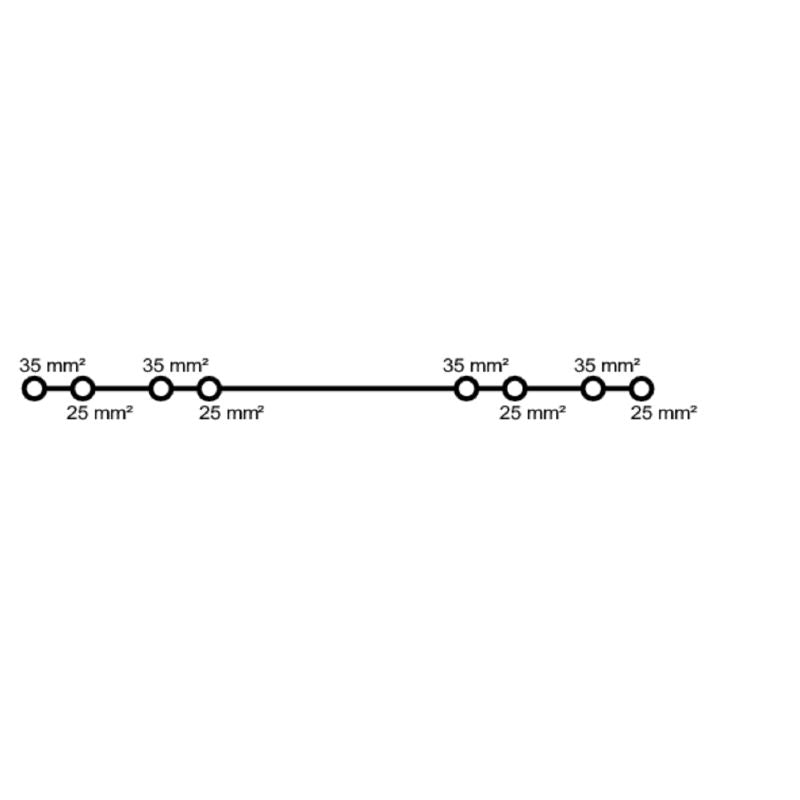

 Number of connections 4
 Number of levels 1
 Clamping range, max 25 mm²
 Clamping range, min 1.5 mm²
 Wire connection cross section AWG, max AWG 4
 Wire connection cross section AWG, min AWG 16
 Standards IEC 60947-7-1, IEC 61238-1, VDE 0603-2

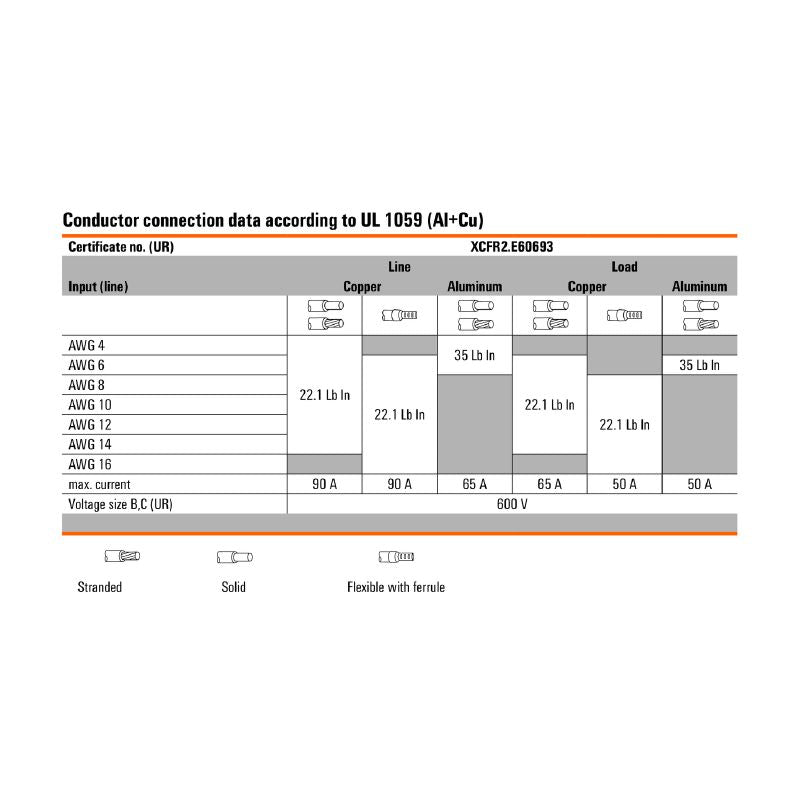

 UL rating data Certificate No. (cURus) E60693
