1547500000 - RoHS Certified 50mm² Terminal Block with Dual Connections (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

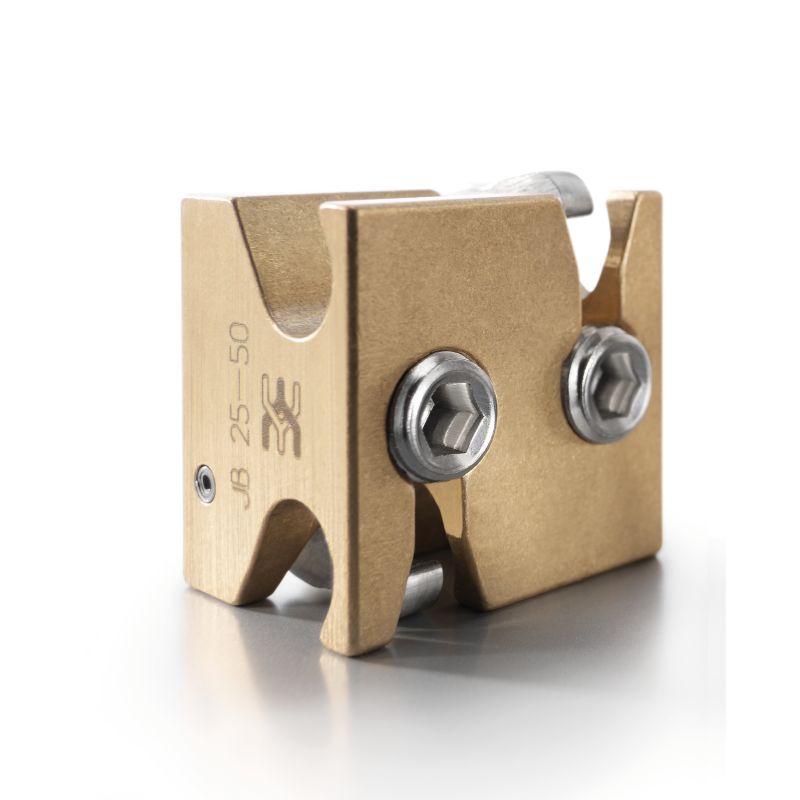

Introducing the JB 25-50, an essential component for reliable electrical connections This product boasts RoHS compliance and holds a UL certification number E60693, ensuring safety and quality Designed for compatibility with potential distributor terminals, it features screw connections that accommodate conductors up to 50 mm² and provides two connection points within a single level With compact dimensions of 24 mm in depth, 33 mm in width, and 32 mm in height, this unit weighs 134.

505 g, making it lightweight and easy to handle It operates effectively in ambient temperatures ranging from -5 °C to 40 °C and can be stored in conditions from -25 °C to 55 °C Additionally, it supports a continuous operating temperature range of -60 °C to 130 °C, ensuring versatility in various environments.

Features and Benefits:

•Compliant with RoHS regulations with exemptions.

•Direct mounting installation.

•Offers a brass-colored finish.

•Supports functional equipotential bonding.

•Used for electrical distribution connections.

Specifications:
