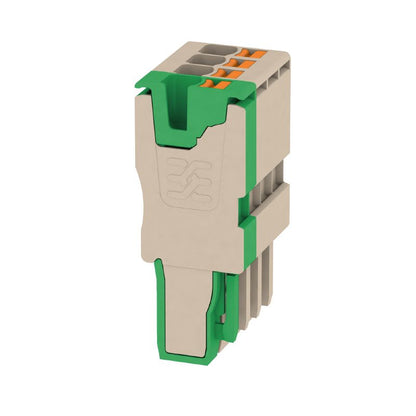

1513790000 - 2.5 mm² 4-Pole Dark Beige Plug, 800 V, 24 A (Pack of 25)

1513790000 - 2.5 mm² 4-Pole Dark Beige Plug, 800 V, 24 A (Pack of 25)

SKU: SKU: 1513790000   Download PDF

Select a Variant:
  • 1513790000 - 2.5 mm² 4-Pole Dark Beige Plug, 800 V, 24 A (Pack of 25)
Qty:
Regular price Now $105.95   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $105.95 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a durable 25 mm² plug crafted for high-performance use at 800 V, facilitating a current capacity of up to 24 A This plug features four poles and showcases a sophisticated dark beige color Adhering to RoHS regulations without any exemptions, it is made from premium Wemid material that boasts a UL 94 flammability rating of V-0 Its robust design makes it suitable for a wide range of applications, ensuring reliability and safety in your electrical connections.

Features and Benefits:

    •Four poles.

    •Dark beige color.

    •RoHS compliant without exemption.

    •Capabilities for a wide range of conductors.

    •Easy PUSH IN connection type.

Specifications:

 Certificate No. (cURus) E60693
 Depth 42.5 mm
 Height 16.5 mm
 Width 20.4 mm
 Storage temperature -25 °C to 55 °C
 Ambient temperature -5 °C to 40 °C
 Number of potentials 4
 Number of levels 1
 Clamping range, max 2.5 mm²
 Clamping range, min 0.14 mm²
 Wire connection cross section AWG, max AWG 12
 Wire connection cross section AWG, min AWG 28
 Rated cross-section 2.5 mm²
 Rated voltage 800 V
 Nominal current 24 A
 Rated impulse withstand voltage 8 kV
 Volume resistance according to IEC 60947-7-x 1.33 mΩ
 Pollution severity 3
 Surge voltage category III
