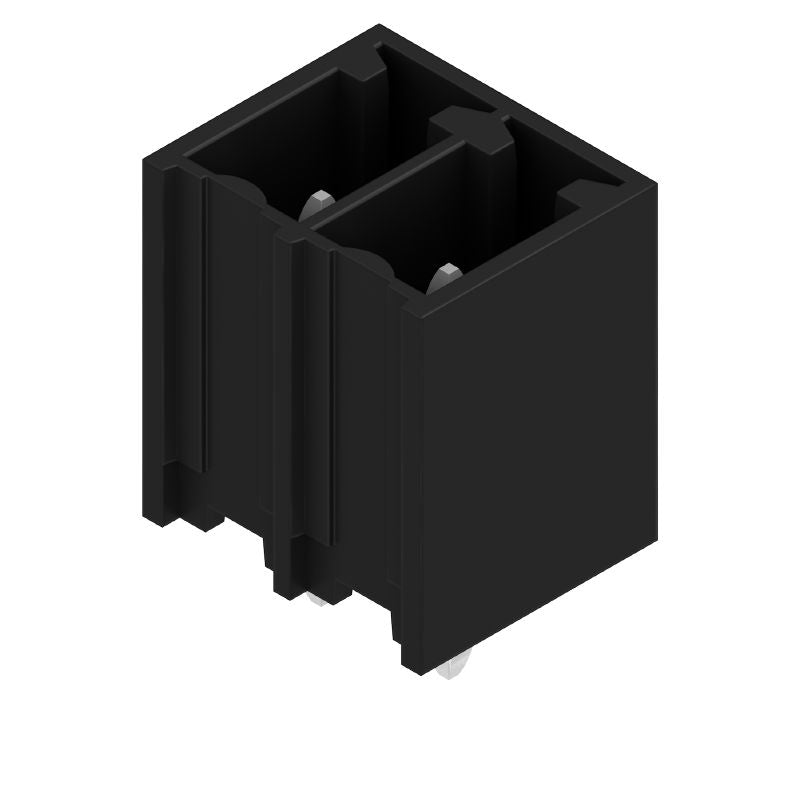

1508670000 - 3.81mm Black PCB Connector, 2 Pole Male Header, THT (Pack of 300)
1508670000 - 3.81mm Black PCB Connector, 2 Pole Male Header, THT (Pack of 300)
SKU: SKU: 1508670000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Explore the reliability of this PCB plug-in connector, featuring a male header with a compact 381 mm pitch Designed for through-hole technology (THT/THR) solder connections, it includes two poles and boasts a solder pin length of 26 mm for secure attachment Housed in a classic black finish, this connector is conveniently packaged in tape for easy handling and storage Perfect for a range of electronic applications.
Features and Benefits:
•Compliant with RoHS standards.
•Conforms to UL requirements with file number E60693.
•THT/THR solder connection increase reliability.
•Touch-safe protection according to DIN VDE standards.
•Allows for pin soldering with specific length and diameter tolerances.
•Static dissipative ESD level packaging.
Specifications:
| Number of poles | 2 |
| Solder pin length | 2.6 mm |
| Pitch | 3.81 mm |
| Rated current (max) | 17.5 A |
| Rated voltage (IEC) | 320 V |
| Operating temperature | -50 to 120 °C |
| Storage temperature | -40 to 70 °C |
| Volume resistance | ≤5 mΩ |
| Insulating material | LCP GF |
| UL 94 flammability rating | V-0 |
