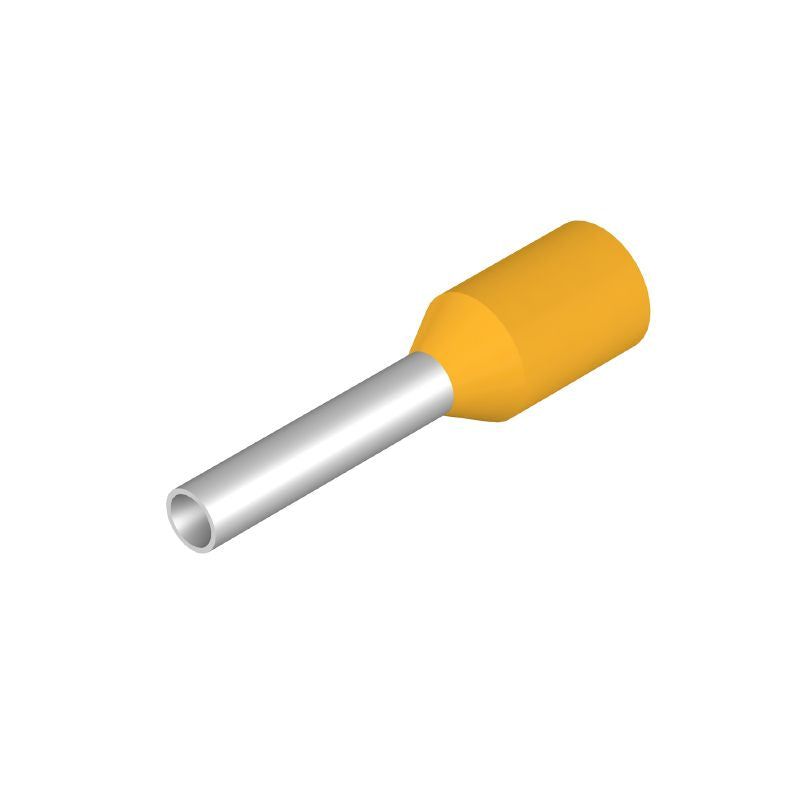

1476250000 - Yellow Wire End Ferrule with Plastic Collar, 10mm Stripping Length (Pack of 100)
1476250000 - Yellow Wire End Ferrule with Plastic Collar, 10mm Stripping Length (Pack of 100)
SKU: SKU: 1476250000 Download PDF
- 1476250000 - Yellow Wire End Ferrule with Plastic Collar, 10mm Stripping Length (Pack of 100)
- 1476250000 - Yellow Wire End Ferrule with Plastic Collar, 10mm Stripping Length (Pack of 100)
Couldn't load pickup availability
Description:
Introducing a practical wire end ferrule featuring a durable plastic collar in a vibrant yellow Classified under product code H1,0/14 GE SP, this ferrule is ideal for standard applications The collar has a diameter of 3 mm, accommodating a conductor cross-section of 1 mm² With a metal sleeve thickness of 015 mm and a plastic collar thickness of 025 mm, this ferrule is built for reliability Additionally, it requires a stripping length of 10 mm, making it a versatile choice for your wiring needs.
Features and Benefits:
•Compliant with RoHS standards.
•Contains no SVHC above 0.1 wt%.
•Suitable for AWG 17 wire connections.
Specifications:
| Collar diameter (D2) | 3 mm |
| Conductor cross-section | 1 mm² |
| Contact surface diameter (D1) | 1.4 mm |
| Contact surface length (L2) | 8 mm |
| L1 in mm | 14 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 17 |
| UL File Number | E354986 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
