1476240000 - 14mm White Wire-End Ferrule for 0.75 mm² Conductors (Pack of 100)
1476240000 - 14mm White Wire-End Ferrule for 0.75 mm² Conductors (Pack of 100)
SKU: SKU: 1476240000 Download PDF
- 1476240000 - 14mm White Wire-End Ferrule for 0.75 mm² Conductors (Pack of 100)
- 1476240000 - 14mm White Wire-End Ferrule for 0.75 mm² Conductors (Pack of 100)
Couldn't load pickup availability
Description:

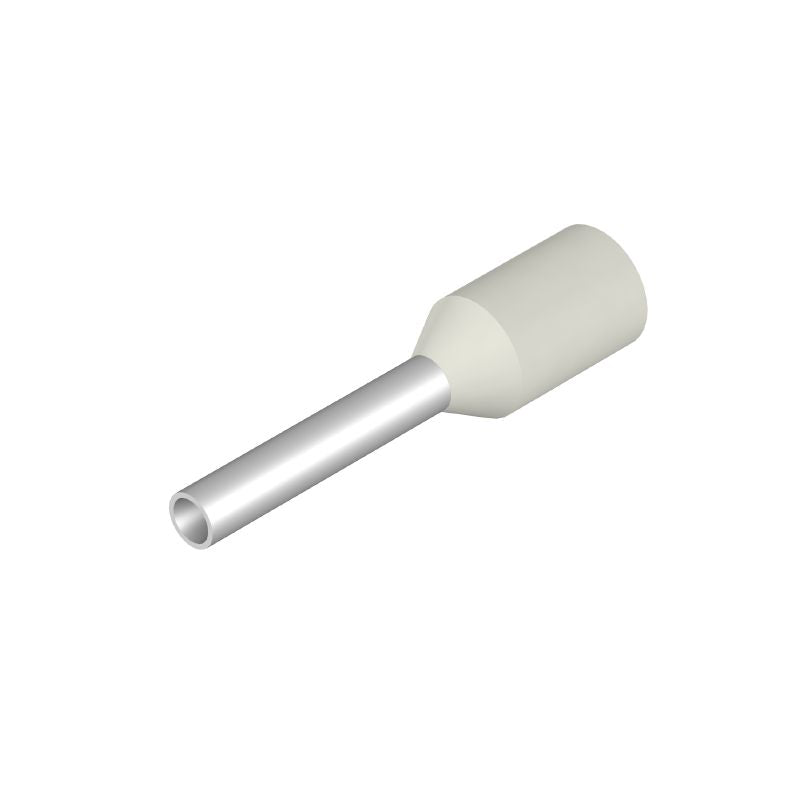

Discover the versatility of this white plastic-collared wire-end ferrule, specifically engineered for standard applications It is designed to accommodate conductor cross-sections of 075 mm² The ferrule features a collar measuring 28 mm in diameter and has a contact surface diameter of 12 mm with a length of 8 mm Overall, this component stretches to 14 mm in length, with a metal sleeve thickness of 0.
15 mm and a collar thickness of 025 mm For optimal performance, a stripping length of 10 mm is recommended, and it is compatible with a maximum wire connection of AWG 18.
Features and Benefits:
•Wire-end ferrule with plastic collar.
•Compliant with RoHS without exemption.
•Lightweight at 0.019 g.
Specifications:
| Collar diameter (D2) | 2.8 mm |
| Conductor cross-section | 0.75 mm² |
| Contact surface diameter (D1) | 1.2 mm |
| Contact surface length (L2) | 8 mm |
| L1 in mm | 14 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 18 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
