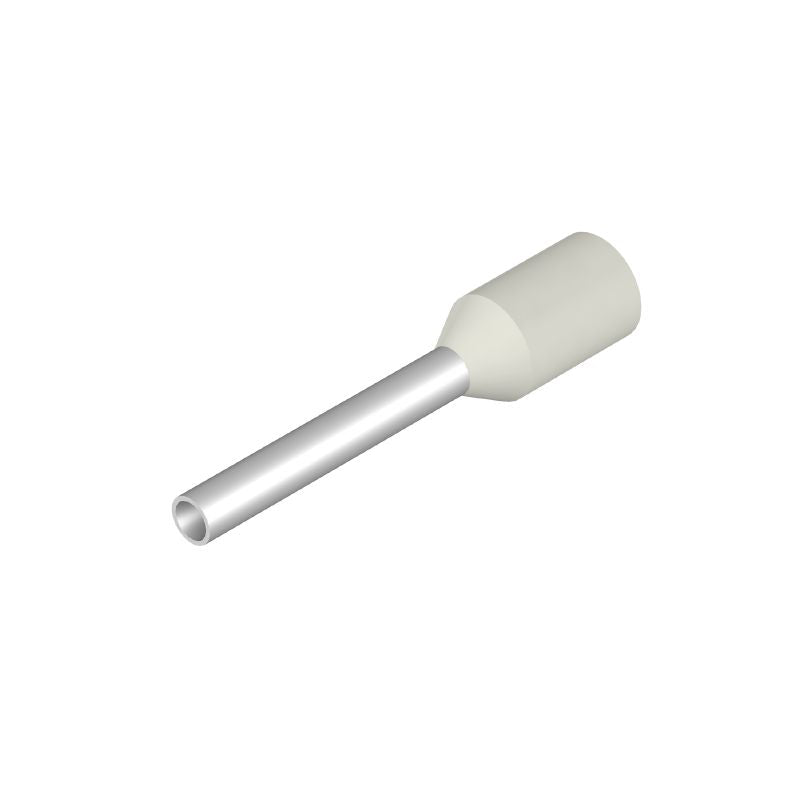

1476030000 - 16mm Wire End Ferrules, 0.75mm² Capacity, White (Pack of 5000)
1476030000 - 16mm Wire End Ferrules, 0.75mm² Capacity, White (Pack of 5000)
SKU: SKU: 1476030000 Download PDF
- 1476030000 - 16mm Wire End Ferrules, 0.75mm² Capacity, White (Pack of 5000)
- 1476030000 - 16mm Wire End Ferrules, 0.75mm² Capacity, White (Pack of 5000)
Couldn't load pickup availability
Description:
Presenting a roll of white wire end ferrules, expertly crafted for standard electrical uses These ferrules boast a collar diameter of 28 mm, ensuring a strong and reliable connection for various wiring tasks Designed for a conductor cross-section of 075 mm², each ferrule features a contact surface with a diameter of 12 mm and a length of 10 mm With an overall length of 16 mm and a stripping length of 12 mm, these ferrules are versatile components ideal for a wide range of electrical applications.
Features and Benefits:
•Compliant with RoHS standards.
•Offered in packaging of 5,000 items on a reel.
Specifications:
| Collar diameter (D2) | 2.8 mm |
| Conductor cross-section | 0.75 mm² |
| Contact surface diameter (D1) | 1.2 mm |
| Contact surface length (L2) | 10 mm |
| L1 in mm | 16 mm |
| Metal sleeve thickness (S1) | 0.15 mm |
| Plastic collar thickness (S2) | 0.25 mm |
| Stripping length | 12 mm |
| Wire connection cross section AWG, max. | AWG 18 |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ETIM 10.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| ECLASS 15.0 | 27-40-02-01 |
