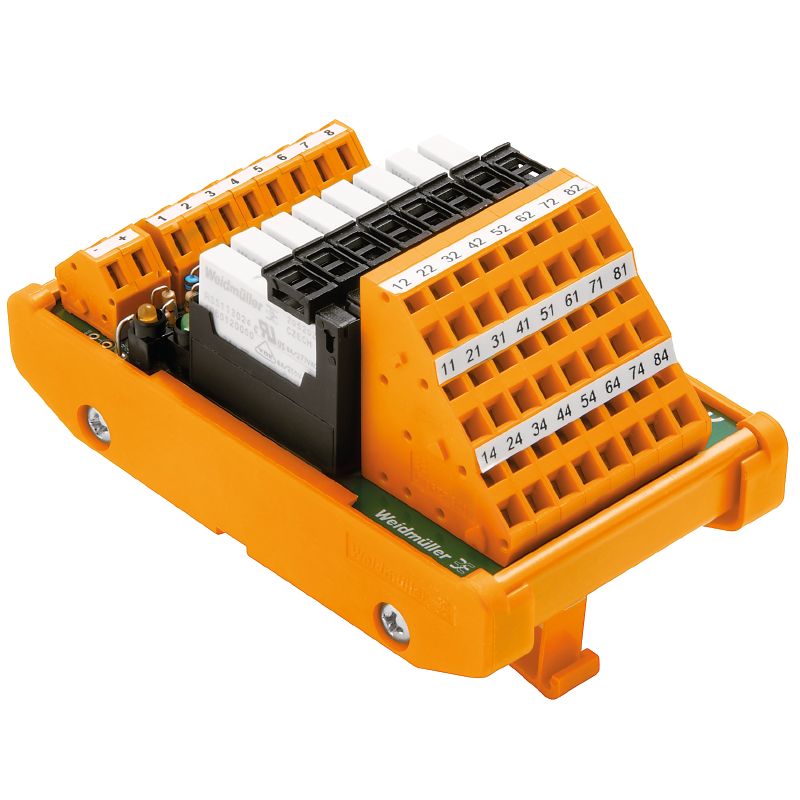

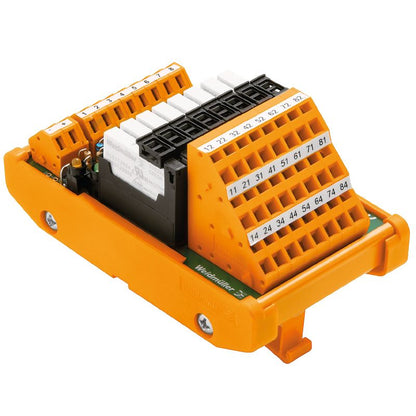

1457220000 - 24V Relay with Tension-Clamp & LED Display, 5M Cycles

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSMS-16 24VUC AU 1CO Z relay, engineered for versatility with a tension-clamp connection system It functions seamlessly with both 24V AC and DC power sources and is RoHS compliant, certified under number E141197 With an impressive mechanical lifespan of up to 5 million switching cycles, this relay includes a green LED indicator for each relay, ensuring clear status visibility It boasts potential-free contact outputs, with a rated current capacity of 4.

5A for continuous AC operations Designed to perform effectively in a temperature range from -25 to +50 °C, it also meets pollution severity level 2 standards Please note that this product has been discontinued.

Features and Benefits:

•24V input voltage with ±10% tolerance for both AC and DC.

•Output relay type is RSS with potential-free contact.

•Clamping range accommodates wire sizes from 0.13 mm² to 2.5 mm².

•Insulation test voltage of 1.2 kV.

•Maintains a maximum pulse voltage test of 6 kV.

Specifications:
