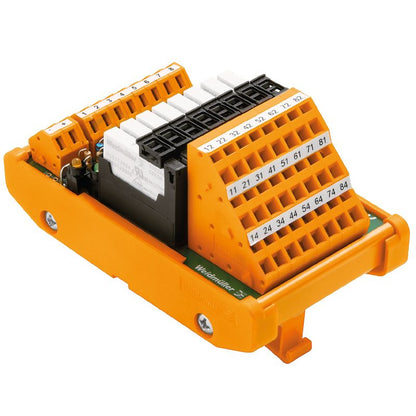

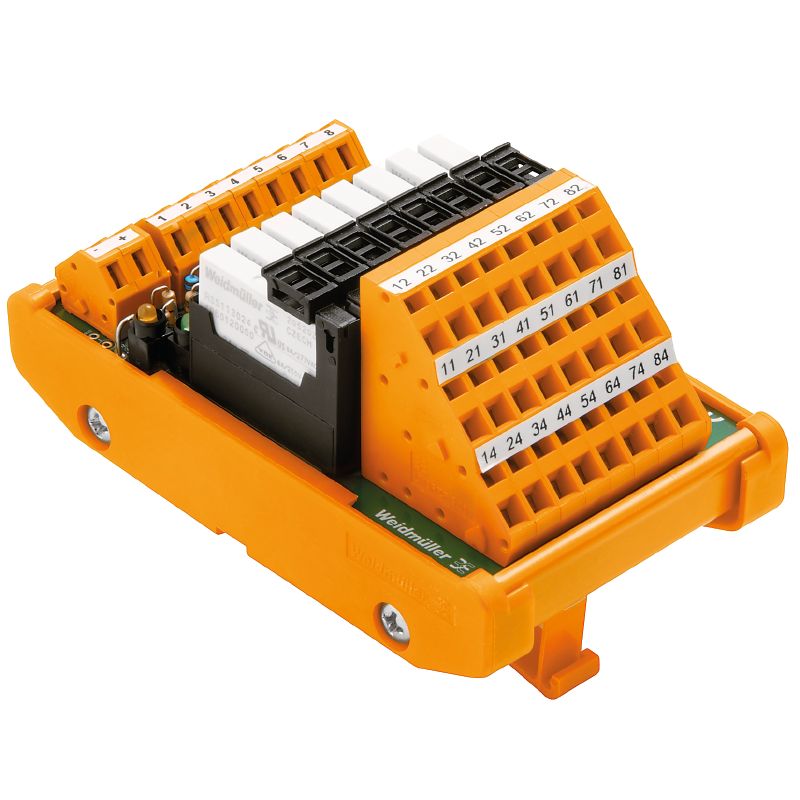

1457210000 - 24VAC/DC Relay with Tension-Clamp Connection, RoHS Compliant

1457210000 - 24VAC/DC Relay with Tension-Clamp Connection, RoHS Compliant

SKU: 1457210000 Download PDF

Variant:
  • 1457210000 - 24VAC/DC Relay with Tension-Clamp Connection, RoHS Compliant
Now $228.93
BEFORE   $0.00 Now $228.93
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile relay unit with a 24 VAC/DC input, perfect for a range of applications This product features a reliable tension-clamp connection and is built to meet RoHS standards Additionally, it carries a UL certification (E141197) for added assurance of quality and safety Please note, this item has been discontinued and is no longer available for purchase.

Features and Benefits:

    •ROHS compliant with exemptions.

    •LED status display is green.

    •Mechanical service life of 5 million switching cycles.

Specifications:

 Depth 76 mm
 Height 109 mm
 Width 112 mm
 Rated voltage AC U N (input) 24 V
 Rated voltage DC U N (input) 24 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.5 A
 Operating temperature UL, max. 25 °C
 Operating temperature UL, min. 0 °C
 Input current 6 mA
 Relay type RSS
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Max. AC continuous current 4.5 A
 Minimum contact current 100 mA
 Minimum contact voltage 5 V
 Insulation coordination (EN50178) {'Pollution severity level': '2', 'Pulse voltage test (1,2/50μs)': '6 kV', 'Insulation test voltage AC': '1.2 kV', 'Rated input insulation voltage': '<50 V AC', 'Rated output insulation voltage': '250 V AC'}
 Connection field {'Clamping range, max.': '2.5 mm²', 'Clamping range, min.': '0.13 mm²', 'Flexible with sleeve, max.': '1.5 mm²', 'Solid, max. H05(07) V-U': '1.5 mm²', 'Solid, min. H05(07) V-U': '0.5 mm²', 'Stripping length': '7 mm'}
