1456570000 - RSMS-8H Tension Clamp, 24V, 61mm Depth, UL Certified

Description:

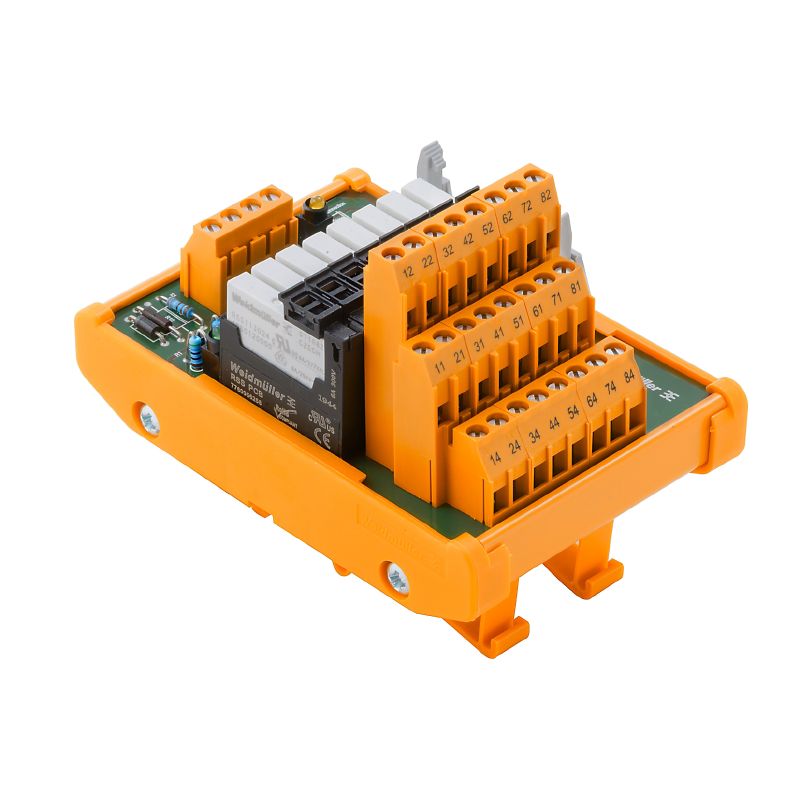

Introducing the RSMS-8H tension clamp connection interface, designed for efficiency and reliability This model operates at 24V with a single contact outlet (1CO Z) and meets RoHS standards, complemented by the UL certification (E141197) for your peace of mind Measuring 61 mm in depth, 109 mm in height, and 72 mm in width, this compact device weighs approximately 217 grams It functions effectively within an operational temperature range of -25 to 50 degrees Celsius and can be stored safely at temperatures from -40 to 60 degrees Celsius.

The product supports a rated voltage of 24V for both input and supply, with a maximum output voltage of 250V and a maximum output current of 35A, making it a dependable choice for your electrical connection needs.

Features and Benefits:

•LED status display for each relay indicates operational status.

•No fuses are required per relay and power supply.

•Potential-free contacts available.

•High mechanical service life rated at 5 million switching cycles.

•Clamping ranges support various wire sizes, ensuring versatility.
