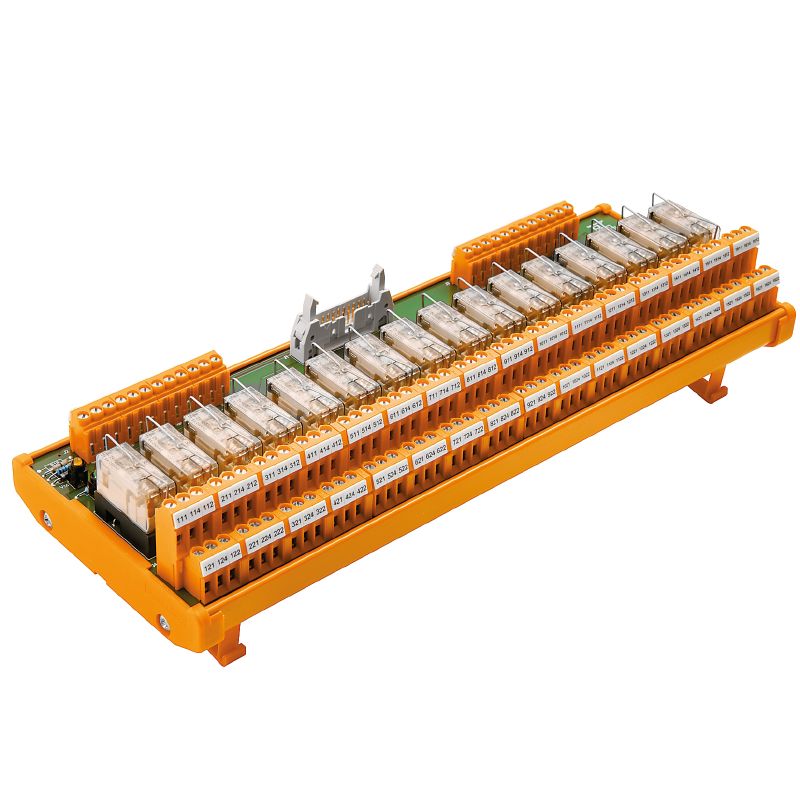

1449290000 - UL Certified RSM-16 48V+ with Tension-Clamp Interface, 290mm Width

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-16 48V+ 2CO Z, a reliable component boasting UL certification E141197 and adherence to RoHS standards This product offers a practical Tension-clamp connection interface, with the identification order number 1449290000 and a GTIN of 4050118253733 With dimensions measuring 290 mm in width, 109 mm in height, and 66 mm in depth, this unit has a net weight of 720018 grams It operates efficiently in a substantial temperature range, from -25°C to 50°C, while storage conditions can vary from -40°C to 60°C.

Additionally, it meets environmental regulations with RoHS compliance, including a documented exemption.

Features and Benefits:

•UL-approved with certificate number E141197.

•Green LED status display per relay and yellow LED for supply voltage.

•Tension-clamp connection type.

•Rated current output of 4.6 A with a maximum AC continuous current of 5 A.

•Mechanical service life rated up to 30 million switching cycles.

•Input voltage range of 48 V DC ± 10%.

•Insulation coordination rated input insulation voltage of <50 V AC.

Specifications:
