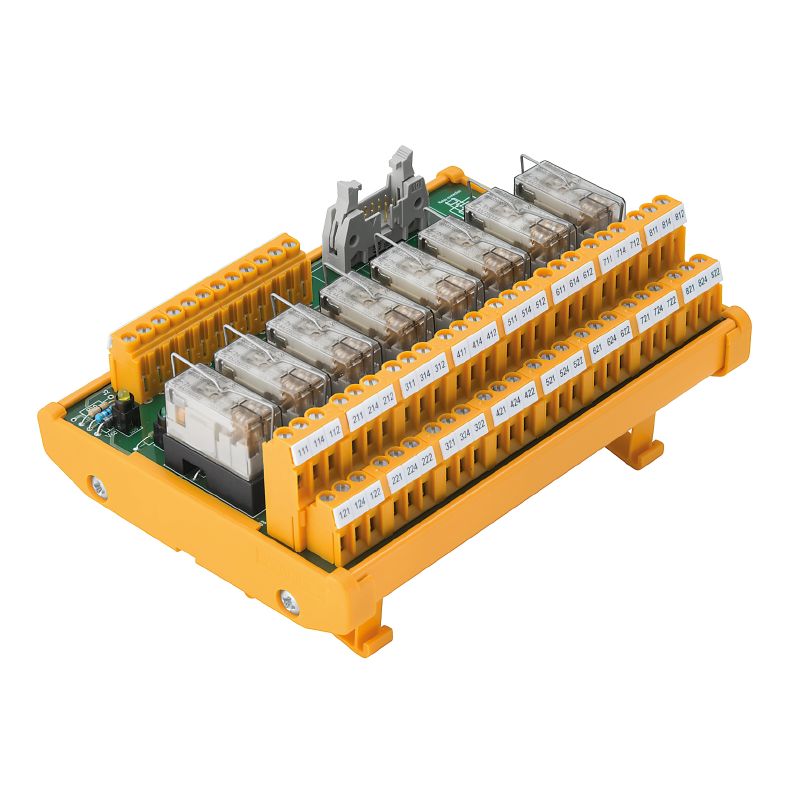

1448910000 - RSM-8 12V Tension-Clamp Device, UL Certified

1448910000 - RSM-8 12V Tension-Clamp Device, UL Certified

SKU: 1448910000 Download PDF

Variant:
  • 1448910000 - RSM-8 12V Tension-Clamp Device, UL Certified
Now $166.34
BEFORE   $0.00 Now $166.34
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-8 12V+ 2CO Z, a versatile device tailored for multiple applications, featuring a reliable tension-clamp connection interface This product meets stringent ROHS standards and carries UL certification (number E141197) With an operating DC voltage of 12V and a maximum rated current of 1A, this device is engineered for optimal performance Please note that the RSM-8 is a discontinued item, offering detailed insights into its connectivity and operational specifications.

Features and Benefits:

    •Tension-clamp connection interface.

    •LED status display for relay and supply voltage.

    •Compliant with environmental directives.

Specifications:

 Depth 66 mm
 Height 109 mm
 Width 149 mm
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Input voltage 12 V DC ± 10%
 Input current 33 mA
 Relay type RCL
 Type of output Potential-free contact
 Rated voltage ≤ 250 V AC
 Max. AC continuous current 5 A
 Min. contact current 0.1 A
 Min. contact voltage 5 V
 Insulation coordination (EN50178) Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category input/output III
 Overvoltage category output/output III
 Clamping range, max. 2.5 mm²
 Clamping range, min. 0.13 mm²
 Stripping length 7 mm
 Type of connection Tension-clamp connection
