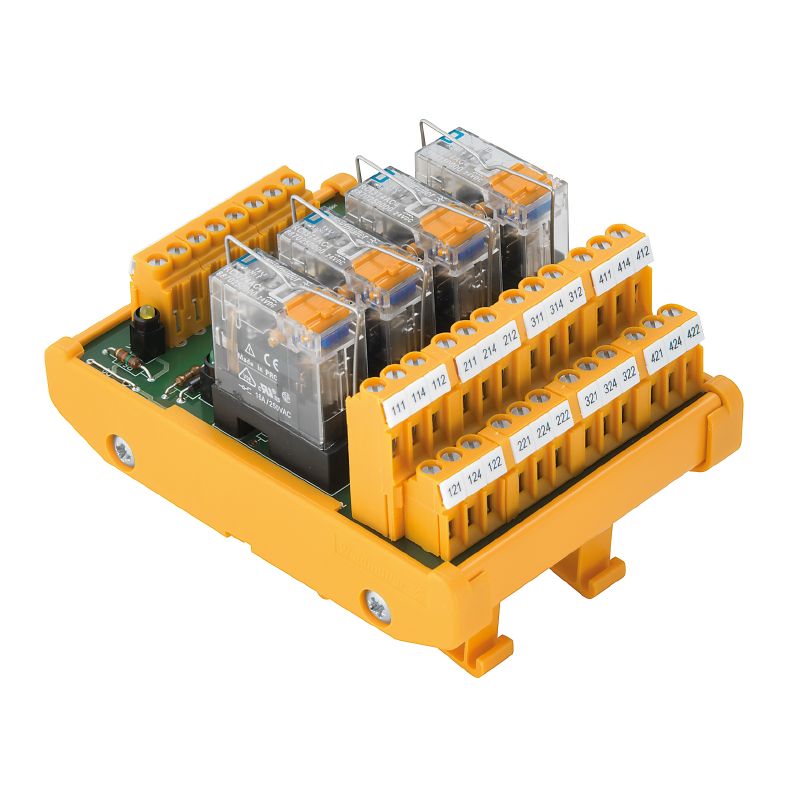

1448830000 - Certified Tension-Clamp Interface Module for Versatile Applications

1448830000 - Certified Tension-Clamp Interface Module for Versatile Applications

SKU: 1448830000 Download PDF

Variant:
  • 1448830000 - Certified Tension-Clamp Interface Module for Versatile Applications
Now $97.43
BEFORE   $0.00 Now $97.43
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The RSM-4I 24V+ 2CO Z is expertly crafted for applications requiring a reliable tension-clamp connection This product is certified to meet multiple standards, including ROHS, making it an ideal choice for various industries Its versatility ensures it can be effectively utilized across a broad range of sectors.

Features and Benefits:

    •LED status display per relay is green.

    •LED status of the supply voltage is yellow.

    •Type of connection is tension-clamp connection.

    •Rated mechanical service life is 10 x 10^6 switching cycles.

    •Rated voltage input is 24 V DC ± 10%.

    •Relay type is RCI.

    •Potential-free contact output.

Specifications:

 Depth 75 mm
 Height 109 mm
 Width 75 mm
 Operating temperature -25...50 °C
 Storage temperature -40...60 °C
 Rated voltage DC supply 24 V
 Rated current supply 1 A
 Rated voltage DC input 24 V
 Rated voltage AC output 250 V
 Rated current output 4.6 A
 Input voltage 24 V DC ± 10%
 Input current 16.7 mA
 Max AC continuous current 5 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Pollution severity level 2
 Pulse voltage test 6 kV
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category III
 Clamping range max 2.5 mm²
 Clamping range min 0.13 mm²
 Stripping length 7 mm
 Max. wire cross-section AWG 14
 Min. wire cross-section AWG 26
