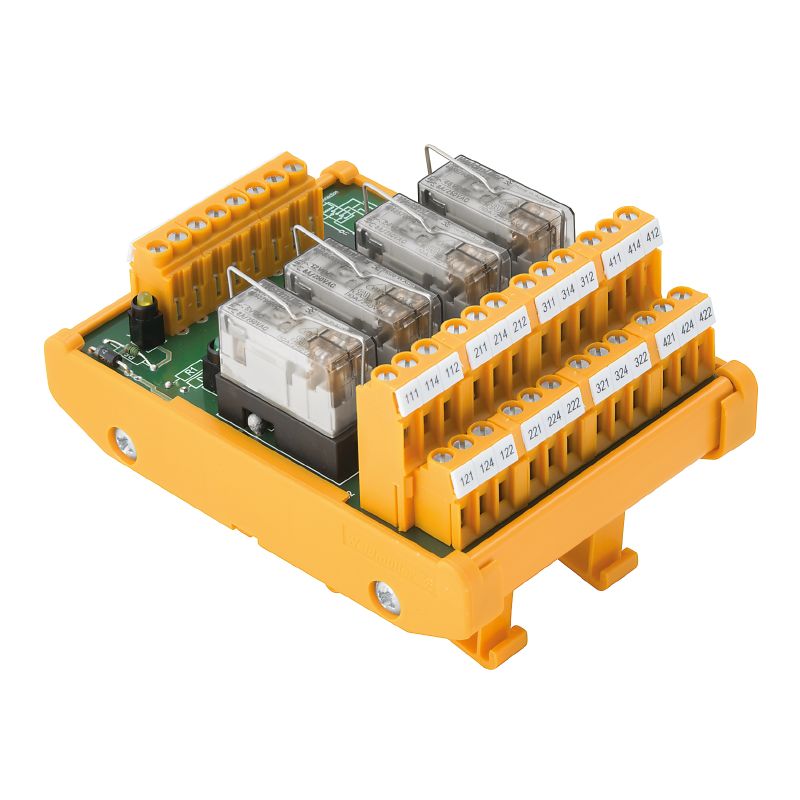

1448690000 - RSM-4 24V Interface Device with Tension-Clamp Connection

1448690000 - RSM-4 24V Interface Device with Tension-Clamp Connection

SKU: 1448690000 Download PDF

Variant:
  • 1448690000 - RSM-4 24V Interface Device with Tension-Clamp Connection
Now $89.06
BEFORE   $0.00 Now $89.06
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-4 24V-2CO Z, a highly efficient interface device featuring a reliable tension-clamp connection This model has successfully undergone all necessary ROHS compliance assessments and is certified for safety and quality under UL Certificate No UR E141197 Please note that this product has been marked as discontinued.

Features and Benefits:

    •LED status display for each relay shows green.

    •Supply voltage display is indicated in yellow.

    •Mechanical service life rated for up to 30 million switching cycles.

    •Connection features tension-clamp design for secure contacts.

Specifications:

 Depth 66 mm
 Height 109 mm
 Width 75 mm
 Rated voltage DC supply 24 V
 Rated current (supply) 1 A
 Rated voltage AC output 250 V
 Rated current (output) 4.6 A
 Operating temperature -25...50 °C
 Storage temperature -40...60 °C
