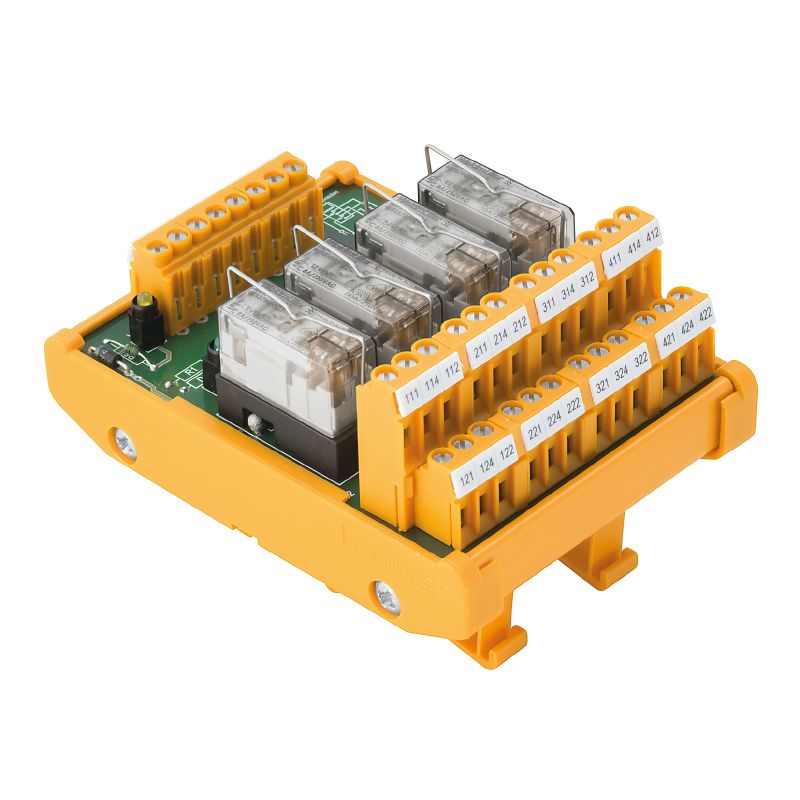

1448630000 - RSM-4 Control Device for Tension-Clamp, Max Temp 50°C

1448630000 - RSM-4 Control Device for Tension-Clamp, Max Temp 50°C

SKU: 1448630000 Download PDF

Variant:
  • 1448630000 - RSM-4 Control Device for Tension-Clamp, Max Temp 50°C
Now $89.06
BEFORE   $0.00 Now $89.06
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-4 12V+ 2CO Z, a versatile control device tailored for tension-clamp connection systems This unit is compliant with ROHS standards and carries the certification number E141197 Functional across a range of applications, it operates effectively in temperatures up to 50 °C and can be stored safely between -40 to 60 °C, making it reliable for both use and storage.

Features and Benefits:

    •LED indicators for relay status and supply voltage.

    •Mechanical service life of 30 million switching cycles.

Specifications:

 Depth 66 mm
 Height 109 mm
 Width 75 mm
 Net weight 224.504 g
 Rated voltage DC U N (supply) 12 V
 Rated current (supply) 1 A
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Input voltage 12 V DC ± 10%
 Input current 33 mA
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Max. AC continuous current 5 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
