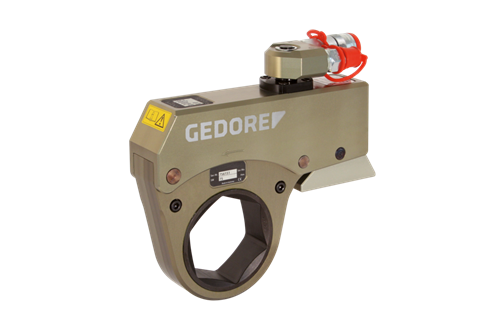

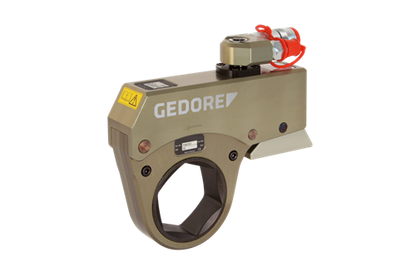

14400 - 360° Rotatable Hydraulic Screwdriver with Quick-Change System
14400 - 360° Rotatable Hydraulic Screwdriver with Quick-Change System
SKU: SKU: 14400
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience enhanced efficiency with our 360° rotatable hydraulic connection, featuring a built-in pressure relief valve for optimal safety This connection sports extra-large hydraulic bores, which significantly reduce system heating The innovative plug-in bolt system allows for quick and easy replacement of interchangeable cassettes, ensuring that you'll never compromise on your equipment function Say goodbye to the hassle of accidental drive part crashes with this reliable design.
Features and Benefits:
•360° rotatable hydraulic connection with integrated pressure relief valve.
•Extra large hydraulic bores for minimum system heating.
•Plug-in bolt system for lightning-fast replacement of the exchangeable cassettes without risk of crashing the drive part.
Specifications:
| Total length [mm] | 156 mm |
| Net weight [kg] | 2.4 kg |
| Width cassette screwdriver (LDK) [mm] | 50 mm |
| Width interchangeable cassette (WK) [mm] | 35 mm |
| Torque (max.) [lbf·ft] | 4500 lbf·ft |
| Torque (min.) [lbf·ft] | 260 lbf·ft |
| Torque (max.) [Nm] | 6200 Nm |
| Torque (min.) [Nm] | 350 Nm |
| Height of swivel connection [mm] | 39.2 mm |
| Height from centre of exchangeable cassette to beginning of rotary connection [mm] | 115/130 |
| Length from centre of interchangeable cassette to end of LDK housing [mm] | 156 mm |
| Length from centre of interchangeable cassette to end of LDK reaction arm [mm] | 172 mm |
| Radius interchangeable cassette [mm] | 34-60 |
| Compliance | Reg.-No. 3502d028-5f02-4aa9-9eb2-ef001dc76745 |
| Width across flats 1 [AF] | 1.5/8" |
| Width across flats 1 [mm] | 41 |
| Width across flats 2 [AF] | 3.1/8" |
| Width across flats 2 [mm] | 80 |
