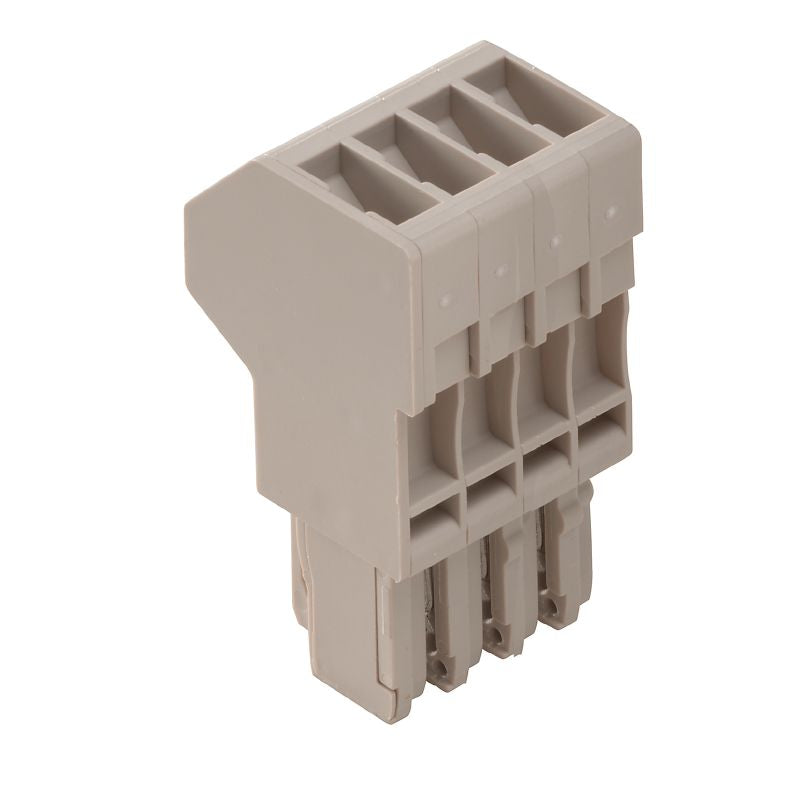

1438220000 - 21.4mm 4-Pole Terminal Plug, 2.5mm², 24A, 500V (Pack of 50)

1438220000 - 21.4mm 4-Pole Terminal Plug, 2.5mm², 24A, 500V (Pack of 50)

SKU: SKU: 1438220000   Download PDF

Select a Variant:
  • 1438220000 - 21.4mm 4-Pole Terminal Plug, 2.5mm², 24A, 500V (Pack of 50)
Qty:
Regular price Now $211.97   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $211.97 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the WP 25/1AN/4 terminal plug, engineered for reliable screw connections This component offers a cross-section of 25 mm², supporting a maximum current of 24 A and voltage of 500 V It features four connection points and operates efficiently with four poles, all within a compact width of 214 mm Built to meet RoHS standards, this model also has a UL file number (E60693) for compliance assurance.

A perfect choice for your electrical needs.

Features and Benefits:

    •Screw connection type.

    •Designed to support up to 24 A and 500 V.

    •Compliant with both RoHS and UL standards.

    •Closed open sides for enhanced protection.

    •Easy to mount by plugging.

    •Compatible with various wire sizes ranging from 0.13 mm² to 4 mm².

Specifications:

 Depth 41 mm
 Height 22.9 mm
 Width 21.4 mm
 Storage temperature -25 °C...55 °C
 Ambient temperature -5 °C…40 °C
 Continuous operating temp., min. -50 °C
 Continuous operating temp., max. 120 °C
 Basic material Wemid
 UL 94 flammability rating V-0
 Number of connections 4
 Rated cross-section 2.5 mm²
 Rated voltage 500 V
 Nominal current 24 A
 Volume resistance according to IEC 60947-7-x 1.33 mΩ
 Power loss in accordance with IEC 60947-7-x 0.77 W
 Pollution severity 3
