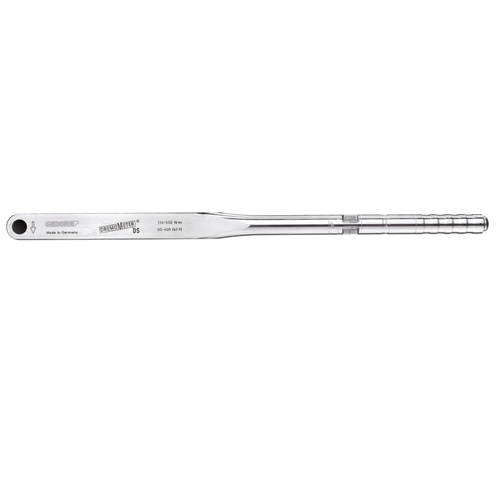

1427121 - Precision 3/4" Torque Wrench 110-550 Nm with Calibration
1427121 - Precision 3/4" Torque Wrench 110-550 Nm with Calibration
SKU: SKU: 1427121
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Ensure precise screw tightening with the DREMOMETER DSL 3/4" Torque Wrench Capable of operating within a torque range of 110 to 550 Nm (80 to 400 lbf·ft), this tool is ideal for a variety of industrial manufacturing applications, delivering accuracy in torque application It meets the stringent DIN EN ISO 6789-2:2017 Type II Class A standards and includes a traceable test certificate, calibrated for a maximum permissible deviation of just +/- 3%, surpassing standard requirements.

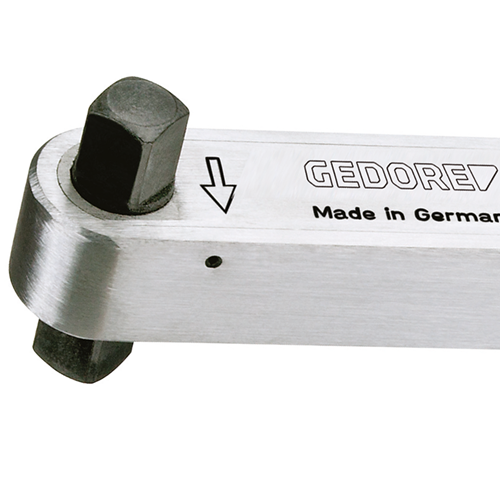

Featuring a sturdy 3/4" square drive, the wrench incorporates a pin-locking mechanism along with automatic short-path activation that provides tactile feedback and an audible signal Crafted from lightweight aluminum alloy, this wrench balances robustness with user safety and efficiency.
Features and Benefits:
•Classified according to DIN EN ISO 6789-2:2017 Type II Class A.
•Comes with a traceable test certificate.
•Calibrated to a maximum permissible deviation of +/- 3%.
•Lightweight and robust aluminum alloy housing.
•Offers maximum precision under extreme continuous use.
•Easy operation with fast and safe torque tightening.
•User-friendly adjustment with a securing button.
•Double-square drive for bi-directional tightening.
•Assembly.
•Series assembly.
•Production.
•Maintenance and repair.
Specifications:
| Total width [mm] | 45 mm |
| Total height [mm] | 35 mm |
| Total length [mm] | 812 mm |
| Distance housing - square drive | 22.5 mm |
| Drive type | Double square rigid |
| Drive connector square [metric] | 20 mm |
| Drive square inch | 3/4" |
| Tightening direction | Left and right |
| Standard | DIN 3120 - B 20 ISO 1174 |
| Trigger mechanism | Short path triggering |
| Torque (max.) [lbf·ft] | 400 lbf·ft |
| Torque (min.) [lbf·ft] | 80 lbf·ft |
| Torque (max.) [Nm] | 550 Nm |
| Torque (min.) [Nm] | 110 Nm |
| Torque wrench type | DSL |
| Fixed setting | No |
| Calibration length | 719 mm |
| Width of head 1 [mm] | 45.0 mm |
| Head height 1 [mm] | 35 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Graduation [lbf·ft] | 10 lbf·ft |
| Scale division [Nm] | 10 Nm |
