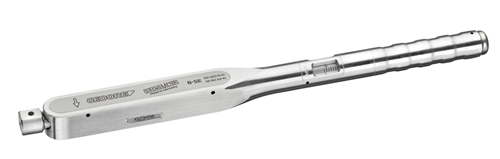

1427091 - DREMOMETER Torque Wrench 25-120 Nm with Locking Safety Feature

1427091 - DREMOMETER Torque Wrench 25-120 Nm with Locking Safety Feature

SKU: SKU: 1427091

Qty:
Regular price Now $561.78   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $561.78 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the DREMOMETER B-SE A+S torque wrench, a precision tool equipped with a locking and safety feature (A+S) that prevents accidental or unauthorized adjustments, significantly boosting reliability in your tasks This model meets DIN EN ISO 6789-2:2017 Type II Class A standards and is calibrated to provide an impressive accuracy with a maximum deviation of +/-3%, surpassing the typical +/-4% outlined in the standards.

Lightweight yet sturdy, it boasts an aluminum alloy housing that makes it an ideal companion for any workshop Its versatile drive accommodates various accessories, allowing for access from the front via an open-end fitting or the side with a reversible ratchet and socket, depending on your needs For optimal performance, apply force only at the center of the handle to ensure accuracy, and it is recommended to use only official GEDORE accessories for the best results.

The design minimizes wear and tear through a unique lever mechanism, and the forged lever chain is crafted in-house for unparalleled quality This wrench ensures maximum precision even in demanding, continuous use while extending the tool's lifespan and facilitating safe torque application The adjustable button is conveniently positioned at the end of the handle to prevent loss, enabling quick adjustments on the go.

This DREMOMETER is ready for serial production with consistent torque values If you need a specific factory setting, please specify the desired Nm value when placing your order.

Features and Benefits:

    •Pre-set value locking and safety device for process reliability.

    •Precision adjusted to +/-3 % deviation for enhanced accuracy.

    •Lightweight aluminum alloy housing for robustness.

    •Extensive accessory range for versatility.

    •User-friendly operation and adjustments.

    •Forged lever chain for durability and precision.

    •Compatible with GEDORE accessories.

    •Assembly.

    •Series assembly.

    •Production.

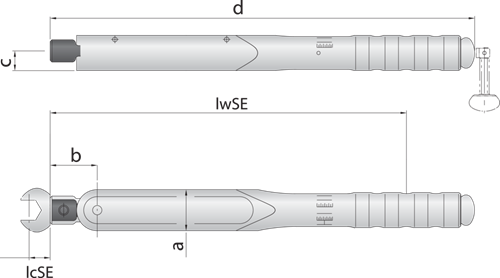

Specifications:

 Total width 35 mm
 Total height 30 mm
 Total length 484 mm
 Net weight 1.25 kg
 Distance housing - square drive 40 mm
 Drive connector rectangular 9 x 12 mm
 Drive type Rectangular cavity
 Tightening direction Left and right
 Trigger mechanism Short path triggering
 Torque (max.) 120 Nm
 Torque (min.) 25 Nm
 Torque wrench type B-SE A+S
 Insertion depth 16.0 mm
 Fixed setting Yes
 Lever length drive side 40 mm
 Lever length handle side 444 mm
 Calibration length 413.5 mm
 Width of head 35.0 mm
 Head height 30 mm
 Material Aluminum alloy
 Precision +/- 3 %
 Test certificate DIN EN ISO 6789-2:2017
 Compliance compliant
 Safety Locking pin
 Graduation 5 lbf·ft
 Scale division 5 Nm
 Depth gauge 17.5 mm
