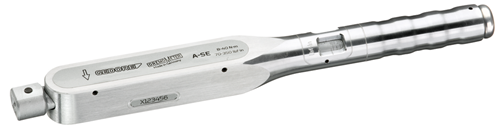

1427059 - DREMOMETER A-SE Torque Wrench 8-40 Nm with Safety Locking
1427059 - DREMOMETER A-SE Torque Wrench 8-40 Nm with Safety Locking
SKU: SKU: 1427059
Couldn't load pickup availability

Description:
Introducing the DREMOMETER A-SE A+S torque wrench, expertly crafted to enhance process reliability with its pre-set value locking mechanism and integrated safety feature (A+S) This tool prevents unintended adjustments, ensuring consistent performance It meets the stringent standards of DIN EN ISO 6789-2:2017 Type II Class A, boasting a maximum permissible deviation of just +/-3%, surpassing the typical +/-4% standard for precision.
Constructed from a lightweight yet durable aluminum alloy, this wrench is built to withstand the demands of workshop environments Its versatile design allows compatibility with a variety of accessories, enabling access from both the front and side based on your specific application needs To maintain accuracy, it is essential to use only end fittings
With an easy-to-use adjusting button that is secured against loss, making torque adjustments is simple and efficient.
Additionally, it comes backed by a certificate in accordance with DIN EN ISO 6789-2:2017, traceable to national standards, making it the perfect choice for serial production where precise torque application is essential.
Features and Benefits:

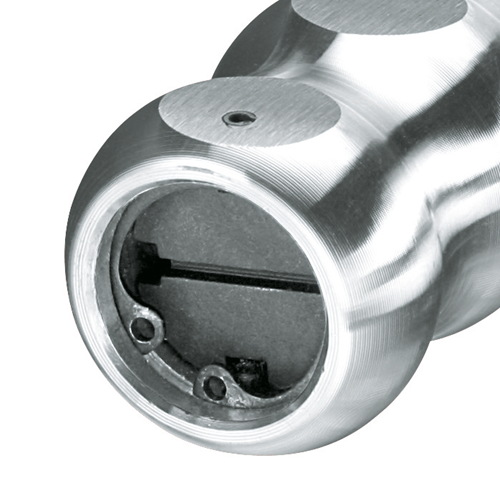

•Pre-set value locking and safety device prevents unintentional adjustments.
•Classified according to DIN EN ISO 6789-2:2017 with precision better than standard requirements.
•Lightweight and robust aluminum alloy construction.
•Supports an extensive range of accessories for various applications.
•Easy adjustment mechanism secured against loss.
•Assembly.
•Series assembly.
•Production.
Specifications:
| Total width [mm] | 35 mm |
| Total height [mm] | 30 mm |
| Total length [mm] | 361 mm |
| Distance housing - square drive | 40 mm |
| Drive connector rectangular | 9 x 12 mm |
| Drive type/drive | Rectangular cavity |
| Tightening direction | Left and right |
| Trigger mechanism | Short path triggering |
| Torque (min.) [lbf·in] | 50 lbf·in |
| Torque (max.) [lbf·in] | 70 lbf·in |
| Torque (max.) [Nm] | 40 Nm |
| Torque (min.) [Nm] | 8 Nm |
| Torque wrench type | A-SE A+S |
| Fixed setting | Yes |
| Lever length drive side [mm] | 40 mm |
| Lever length handle side [mm] | 321 mm |
| Calibration length | 302 mm |
| Width of head 1 [mm] | 35.0 mm |
| Head height 1 [mm] | 30 mm |
| Material | Aluminum alloy |
| Precision +/- | +/- 3 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Compliance | compliant |
| Safety | Locking pin |
| Graduation [lbf·in] | 50 lbf·in |
| Scale division [Nm] | 5 Nm |
| Depth gauge [metric] | 17.5 mm |
