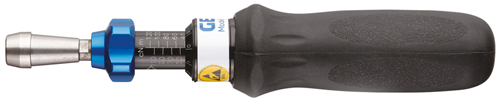

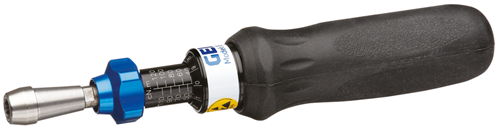

1400177 - High-Speed Torque Screwdriver 4-9 Nm for Industrial Use
1400177 - High-Speed Torque Screwdriver 4-9 Nm for Industrial Use
SKU: SKU: 1400177
Couldn't load pickup availability
Description:
Experience precise screw tightening with this torque screwdriver, engineered for controlled application between 4 and 9 Nm Its high-speed operation is ideal for efficient tightening in various sectors such as electronics, instrument-making, industrial production, and quality assurance, making it a valuable tool for serial manufacturing processes.
Features and Benefits:
•Adjustable Torque Wrench with a Scale.
•1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3.
•Working accuracy: +/- 6 % tolerance of set torque, according to DIN EN ISO 6789, traceable to national standards.
•Precision radial ball clutch and cam design for controlled bi-directional tightening.
•Precision mechanism slips very noticeably when the pre-set value is achieved.
•Automatic resetting to the starting position.
•"Positive-Lock" system automatically fixes the set value preventing it from wrong setting.
•Measuring range of 4 Nm to 9 Nm.
•Micrometre scale graduation of 1 cNm, respectively 0.1 Nm.
•EPA-conformant for use in sensitive electrostatic applications.
•Assembly.
•Production.
•Quality control.
•Series assembly.
•Maintenance and repair.
Specifications:
| Total height [mm] | 38 mm |
| Total length [mm] | 196 mm |
| Drive connector hexagon [metric] | 6.3 |
| Drive connector hexagon [inch] | 1/4" |
| Drive type/drive | Bitholder |
| Tightening direction | Left and right |
| Trigger mechanism | Friction clutch |
| Max Torque [Nm] | 9 Nm |
| Min Torque [Nm] | 4 Nm |
| Precision +/- | +/- 6 % |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Cross-handle available | No |
| Compliance | compliant |
| Epa-/Esd-Model | Yes |
