14 AWG THHN THWN-2 PULLPro Stranded Copper Building Wire

14 AWG THHN THWN-2 PULLPro Stranded Copper Building Wire

SKU: SKU: NES0128PULL12   Download PDF

Color
Length
Qty:
Regular price Now $630.00   Web pricing policy
Regular price BEFORE   Sale price Now $630.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Also Known As:

14 Copper wire, 14 building cable, 14 hook up wire, 14 conduit wire, 14 nylon wire, 14 construction cable, 14 thermoplastic-insulated copper wire, 14 THHN-PVC tray cable.

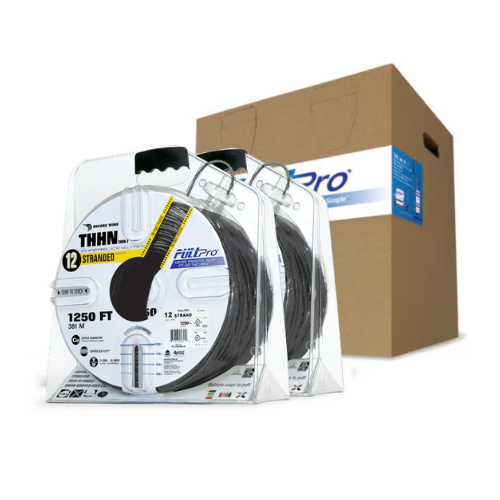

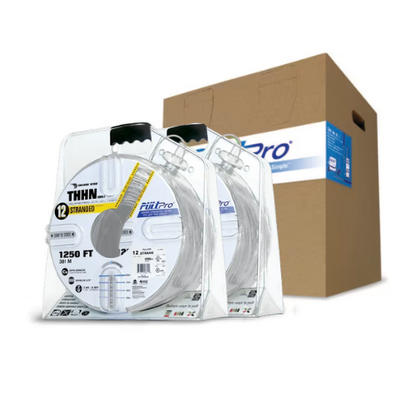

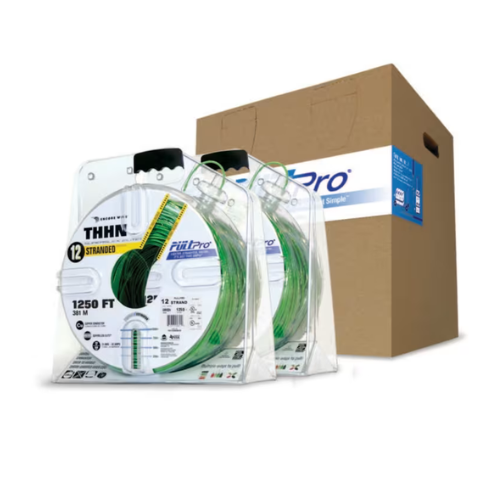

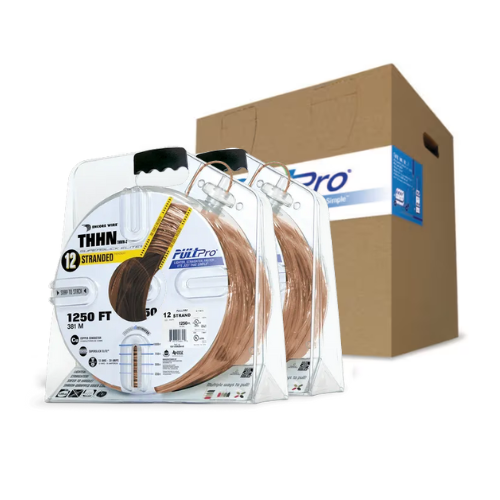

• Unique coil pattern allows for a tangle-free and memory-free pull, retaining weight distribution and improving balance

• PullPro fit together for a solid, steady multi-conductor pull

• Shrink-wrapped inner coil allows wire to be pulled with or without the case

• Protect your investment; no spool to break, no wire to scrap

Packing Futures:

Shrink-wrapped inner coil allows wire to be
pulled with or without the case
Centered, form-fitting grip handle
Pocket to secure wire between pulls
Reduced coiling memory

Everything  You Need In Package:

Available in 14 AWG, 12 AWG and 10 AWG, Solid and Stranded. All PullPro circuit wire comes in our slick but never slippery or greasy SuperSlick Elite and weighs less than 30 lbs for better handling and increased safety.

Pulling & Stacking:

PullPro cases fit together when pulling multiple conductors. Stack PullPro Cases for a horizontal pull, arrange in an "X" pattern or side-by-side for a vertical pull.

Improved Balance:

Packaging sits upright making it safer and easier to lift. PullPro retains weight distribution during pull, improving balance.

Footage Estimator:

Track your remaining wire with the Footage Estimator

Conductor:

THHN THWN-2 conductors are constructed of annealed soft copper that follows ASTM B3 and ASTM B8 standards.

Insulation:

The cable is insulated with a thermoset plastic jacket (PVC) that is flame-retardant, sunlight-resistant, lead-free, strong, and stable. Without being too bulky, it ensures that the cable can be used in harsh conditions. The jacket is color-coded in accordance with ICEA Method 4.

Resources
Applications
THHN stands for thermoplastic high heat-resistant nylon. Known for versatility and durability, it is the most common type of building cable. The double marking THHN /THWN-2 indicates that the electrical wire is suitable for wet and dry conditions equally (The letter "W" means that it is water-safe). Additionally, the cable is resistant to corrosion, excessive dryness, and the impact of chemicals. The building wire is rated 90 degrees Celsius in both wet and dry locations. The electrical wire is rated at 600 V.
Features
Standards:
ICEA S-73-532
UL 1277 (Resistant to flame, moisture, and sunlight)
UL 1581, UL 83, UL 1063 , UL 758
A-A59544
ASTM B3 and B8 conductor
ANSI/NFPA 70 for Safe Electrical Design and Installation
RoHS compliant
Safe For Commercial and Industrial Use
Color-coded #1-E2 per ICEA S-73-532
May be used in NEC Class I and II systems
May be used in Division 2 hazardous locations
Allowed for Exposed Run (ER) and be used in accordance with NEC

THHN THWN-2 Copper Building Wire Allowable Ampacity in Duct: 25 Amps
Specifications
Size AWG: 14
Weight per 1,000 ft: 16 lbs
Outside Diameter: 0.120 inches
Conductors: Annealed Soft Copper per ASTM B3 and ASTM B8
Number of Strands: 19
Insulation: PVC
Insulation Thickness (mils): 15
Nylon Thickness (mils): 4
Jacket: PVC
Houston Wire Part #: HW001 01401
