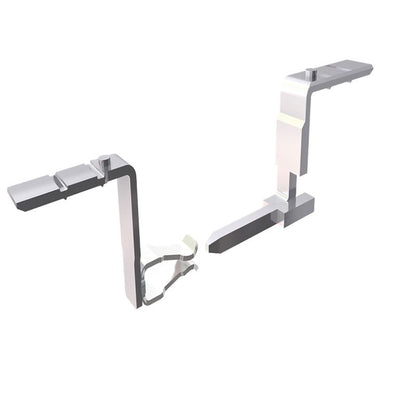

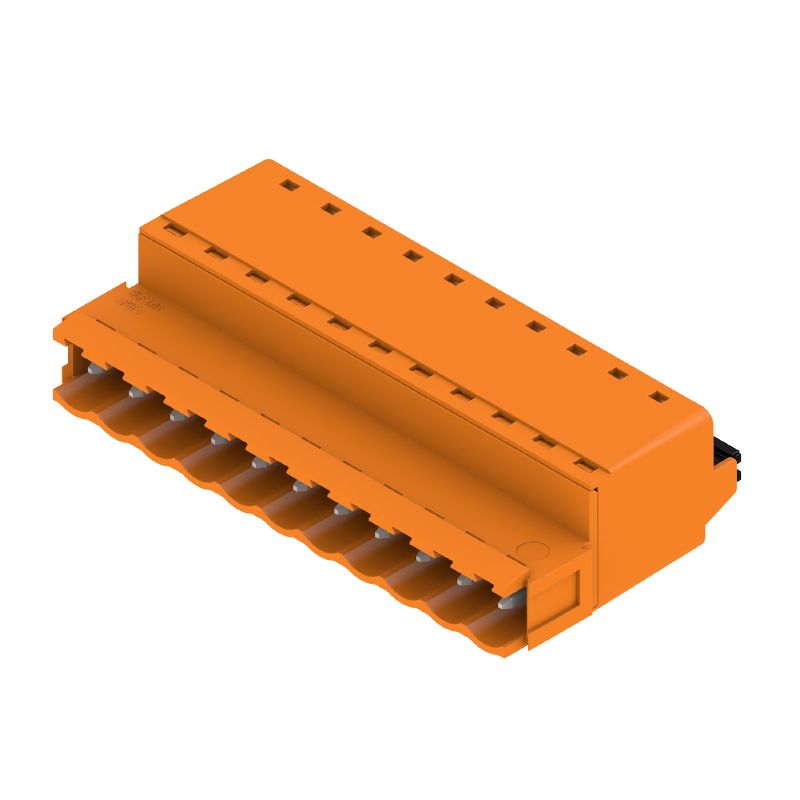

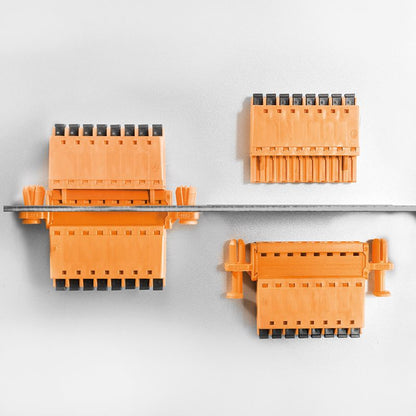

1335540000 - 5.08mm Male PCB Connector, 11 Poles, 180° Angle (Pack of 30)
1335540000 - 5.08mm Male PCB Connector, 11 Poles, 180° Angle (Pack of 30)
SKU: SKU: 1335540000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing our robust male plug PCB connector, featuring an 11-pole configuration with a 508 mm pitch for a 180° connection This connector utilizes a PUSH IN mechanism with an actuator, making it easy to use It is designed to accommodate conductors with a maximum clamping capacity of 331 mm², ensuring secure and reliable connections for your electronic projects.
Features and Benefits:
•Environmental compliance with RoHS.
•Field connection type.
•Touch-safe protection according to DIN VDE 0470.

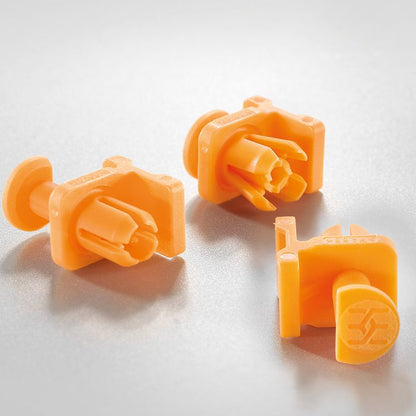

•Can be coded for security.
•Lightweight: 18.36 g.
•Packaged in boxes of 30 items.
Specifications:

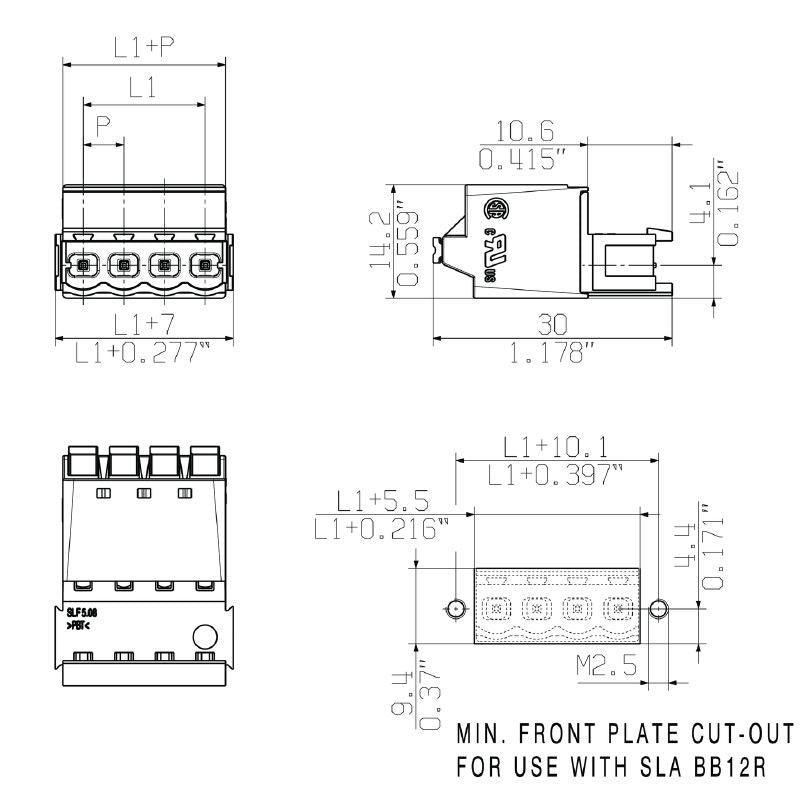

| Pitch | 5.08 mm |
| Number of poles | 11 |
| Depth | 30 mm |
| Height | 14.2 mm |
| Rated voltage | 400 V (IEC), 300 V (UL) |

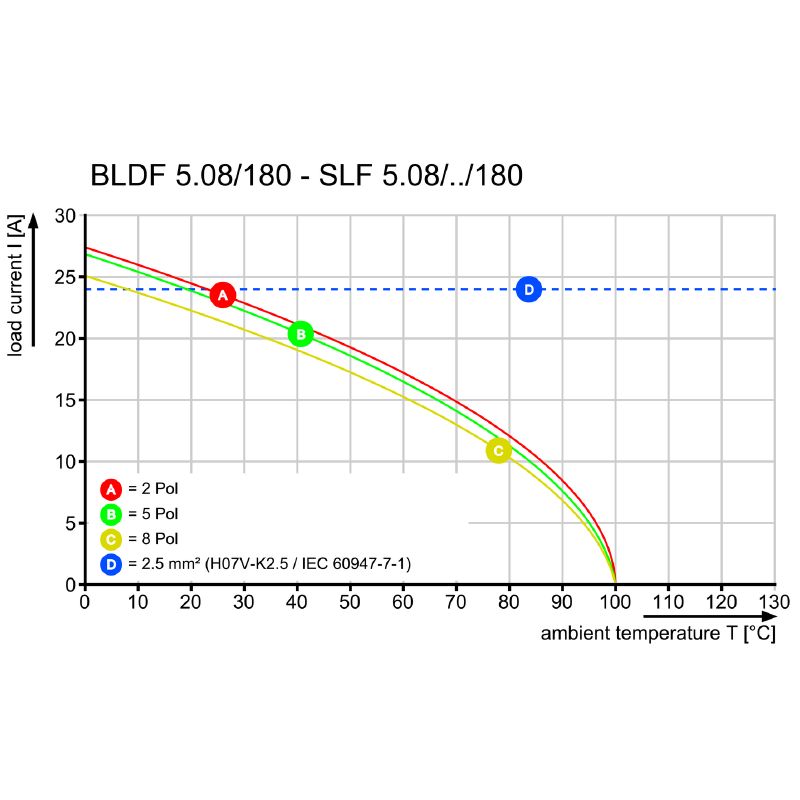

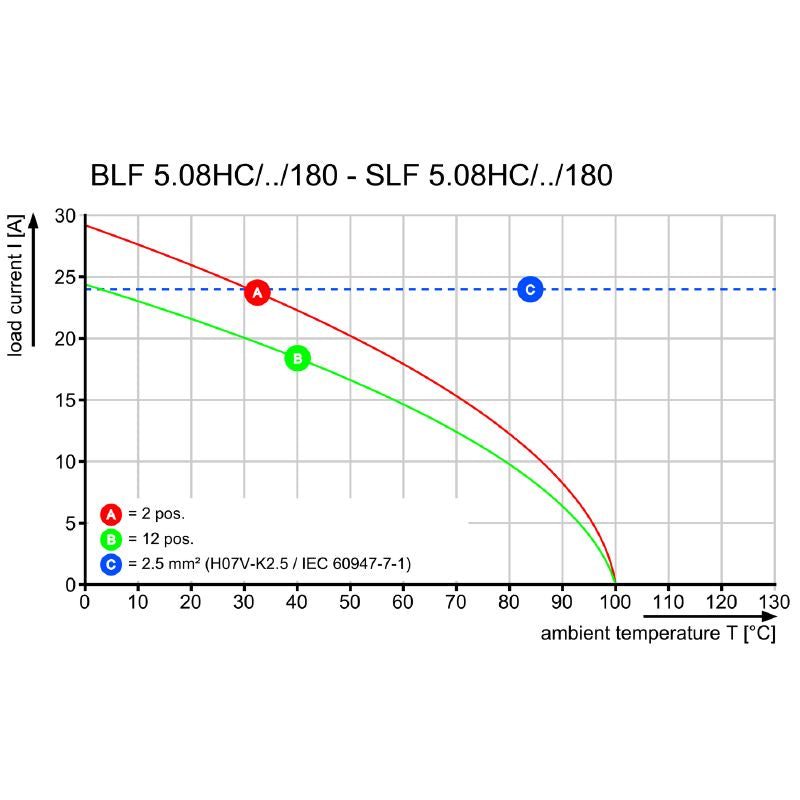

| Rated current | 25.9 A (IEC), 14 A (UL) |
| Clamping range | 0.13 mm² to 3.31 mm² |
| IP protection degree | IP20 plugged / IP10 unplugged |
| Insulating material | PBT |
| Operating temperature | -50 °C to 100 °C |
| Storage temperature | -40 °C to 70 °C |
| UL flammability rating | V-0 |
