Home / 131007 Enclosure, PC
1 1

131007 Enclosure, PC

131007 Enclosure, PC

SKU: UL TPCM 131007   Download PDF

Qty:
Now $3,257.00   Web pricing policy
BEFORE   Now $3,257.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

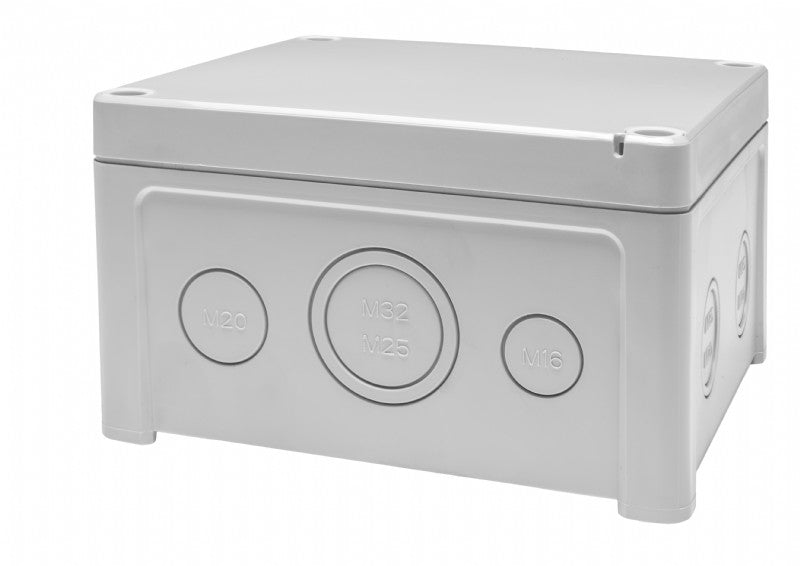

Enclosure made of PC material, featuring a grey cover with metric knock-out base This product is designed to be used in various UL Type applications and offers a combination of durability and protection.

Features and Benefits:

    •Constructed from polycarbonate for enhanced durability.

    •Features a grey cover with a metric knock-out base.

    •Offers a continuous temperature range of -40 to 175 °F (-40 to 80 °C).

    •Designed for UL/cUL Type ratings of 1, 4, and 4X.

    •Impact resistance rated at IK07/IK08.

    •Totally insulated for electrical safety.

    •UV resistant as per UL 508 guidelines.

    •Meets flammability standards of UL94-5VA (f1) and UL94-V0 (f1).

    •Glow wire test rated at 960 °C.

    •Used in electrical and junction box applications providing safe housing for electronic components.

    •Suitable for various settings due to its robust design.

Specifications:

 Dimensions Height (inch) 5.1
 Dimensions Width (inch) 3.7
 Dimensions Depth (inch) 2.6
 Dimensions Height (mm) 130
 Dimensions Width (mm) 95
 Dimensions Depth (mm) 65
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type 1, 4, & 4X
 Impact Resistance (EN 62262) IK07/IK08
 Electrical insulation Totally insulated
 Halogen free No
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695) 960 °C
