1308250000 - UL Certified 72mm Interface Connector with Tension-Clamp Design

1308250000 - UL Certified 72mm Interface Connector with Tension-Clamp Design

SKU: 1308250000 Download PDF

Variant:
  • 1308250000 - UL Certified 72mm Interface Connector with Tension-Clamp Design
Now $98.56
BEFORE   $0.00 Now $98.56
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

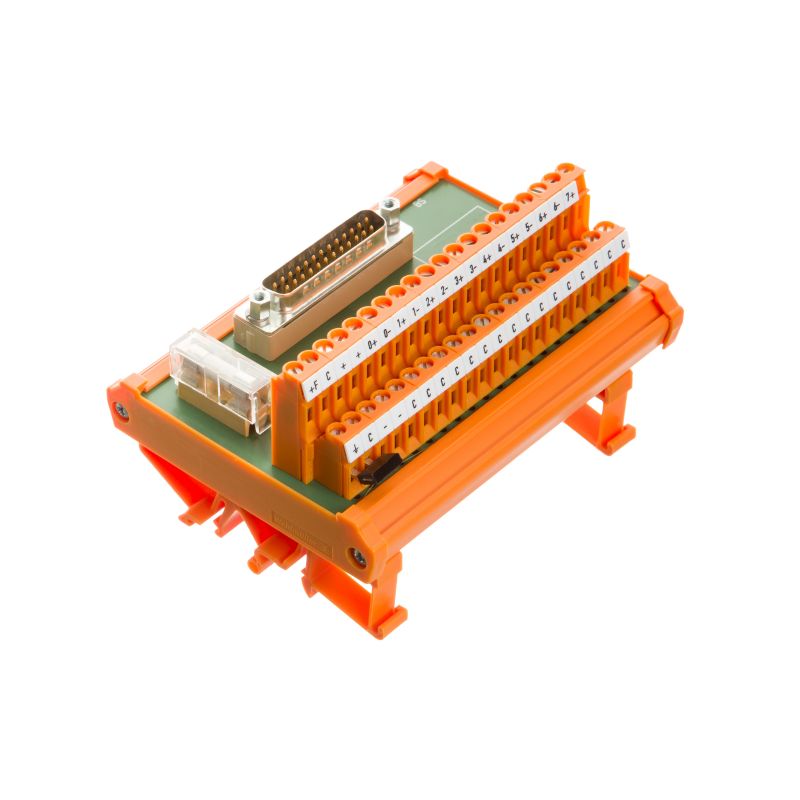

Introducing the RS 8AIO DP SD Z, an advanced solution for reliable interface connections, featuring a 2-wire, tension-clamp configuration This device adheres to RoHS compliance and boasts essential certifications, including UL certification (Certificate No E141197) Measuring 117 mm in width, 87 mm in height, and 72 mm in depth, it weighs a compact 17342 g Engineered to operate effectively in a temperature range of -20 to 50 °C, it can also withstand storage conditions from -40 to 60 °C.

Designed with adherence to environmentally-friendly standards, this product is particularly suited for situations requiring RoHS exemption considerations.

Features and Benefits:

    •Tension-clamp connection ensures secure connections.

    •Includes shielding in the SUB-D plug-in connector for protection.

    •Common pole polarity can be adjusted via jumper.

Specifications:

 Depth 72 mm
 Height 87 mm
 Width 117 mm
 Net weight 173.42 g
 Operating temperature -20 to 50 °C
 Storage temperature -40 to 60 °C
 Rated current I_N 0.5 A
 Rated voltage U_N ≤ 25 V AC, 50 V DC
 Rated current (supply) 3 A
 Rated voltage DC U_N (supply) 24 V
 Common pole polarity Positive or negative selectable
 Number of poles (control side) 25-pole plug
 Max. current per channel 0.5 A
 Operating voltage ≤ 25 V AC / 50 V DC
 Insulation coordination According to DIN EN 50178
 Rated insulation voltage <50 V AC
 Surge voltage category III
 Pollution severity level 2
 Pulse voltage test 0.8 kV
 Insulation test voltage AC 0.35 kV
