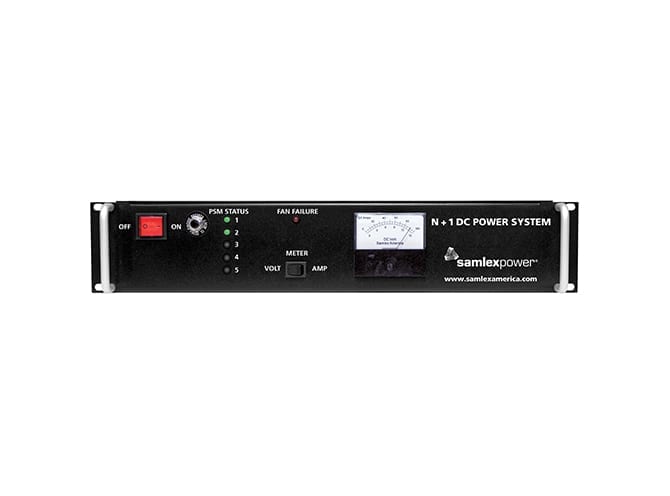

12V 40 Amp Rack Mount Power Supply with N+1 and battery back-up (230V)

12V 40 Amp Rack Mount Power Supply with N+1 and battery back-up (230V)

SKU: SEC-40BRM-230 Download PDF

Now $827.30
BEFORE   Now $827.30
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This modular 19” rack mount AC-/DC power supply can provide up-to 40 Amps continuous power The output DC voltage is highly regulated at 138 Volts (210-250 Volts, 50/60 Hz AC input) Output power can be expanded in steps of 20 amps (up-to 100 Amps max) An external battery can be connected for back-up and a section of the output current (up-to 8 amps) is diverted to charge the batteries when in state of discharge using the in-built battery back-up module.

The battery supplies the DC load on loss of utility power Features include N+1 redundancy, front panel analog Volt/Ampere Meter display, remote monitoring and indication by 25-pin D-sub connector, fan failure warning and alarm indication Ideal for critical power supply applications, telecommunication systems, mobile sound/audio displays, GPS receivers, security systems, CCTV systems.

Features and Benefits:

    •N+1 redundancy.

    •Front panel analog Volt/Ampere Meter display.

    •Remote monitoring and indication by 25-pin D-sub connector.

    •Fan failure warning and alarm indication.

    •Critical power supply applications.

    •Telecommunication systems.

    •Mobile sound/audio displays.

    •GPS receivers.

    •Security systems.

    •CCTV systems.

Specifications:

 Output Voltage: 13.8 Volts
 Input Voltage: 210-250 Volts, 50/60 Hz AC
 Max Output Current: 40 Amps
 Expanded Output Power: Up-to 100 Amps
 Battery Recharge Current: Up-to 8 amps
