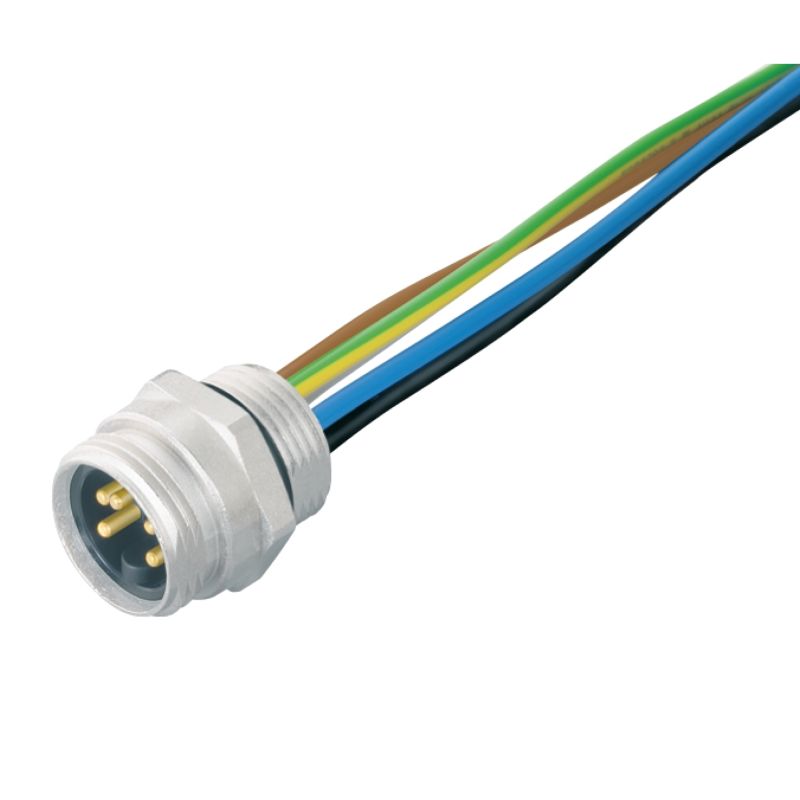

1292480000 - 0.2m 5-Pole Connector with 7/8" Interface and PG 13.5 Mount
1292480000 - 0.2m 5-Pole Connector with 7/8" Interface and PG 13.5 Mount
SKU: SKU: 1292480000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
This connector is equipped with integrated plugs featuring a 7/8 inch interface and a PG 135 mounting thread for secure attachment It spans a compact length of 02 meters and incorporates five poles Compliance with RoHS standards is assured, and it bears the UL certificate number E307231 for reliability and safety.
Features and Benefits:
•RoHS compliant with exemption.
•Gold-plated contacts for enhanced conductivity.
•IP67 protection when properly assembled.
Specifications:
| Core cross-section | 0.75 mm² |
| Number of poles | 5 |
| Strand / cable length | 0.2 m |
| Nominal current | 8 A |
| Nominal voltage | 300 V |
| Plugging cycles | ≥ 100 |
| Rated current | 8 A (4- and 5-pole), 10 A (3-pole) |
| Protection degree | IP67 |
| Temperature range of housing | -25…+85 °C |
| Cable gland | PG 13.5 |
| Contact material | CuZn |
| Housing main material | Zinc diecast |
| Mounting torque | 6 ... 6.25 Nm |
| Rated impulse voltage | 4,000 V |
| Rated voltage | 300 V |
| Rated voltage (UL) | 600 V |
