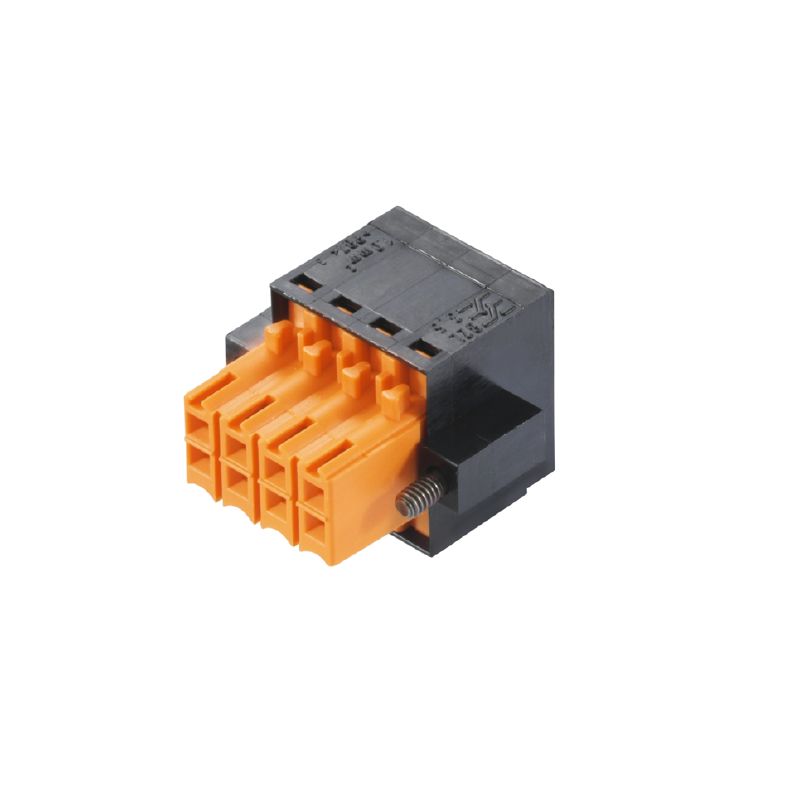

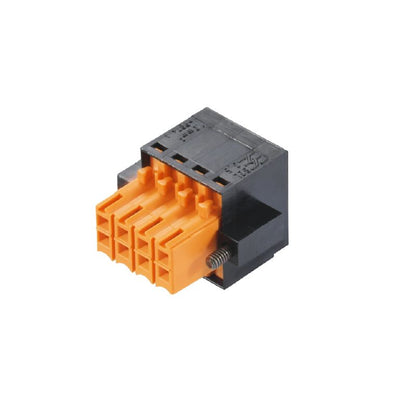

1290790000 - 3.50mm Female PCB Connector, 16 Poles, 180° Angle (Pack of 54)
1290790000 - 3.50mm Female PCB Connector, 16 Poles, 180° Angle (Pack of 54)
SKU: SKU: 1290790000 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
This 350 mm PCB connector boasts a female plug configuration featuring 16 poles angled at 180 degrees It utilizes a secure tension-clamp connection method, accommodating a maximum clamping range of 1 mm² The product is packaged in a box and remains available until August 31, 2025, making it a reliable choice for various applications.
Features and Benefits:
•Tension-clamp connection for secure wire attachment.
•Safe from finger touch according to DIN VDE 57 106.
•Can be coded to prevent misconnection.
Specifications:
| IEC Rated Voltage | 200 V |

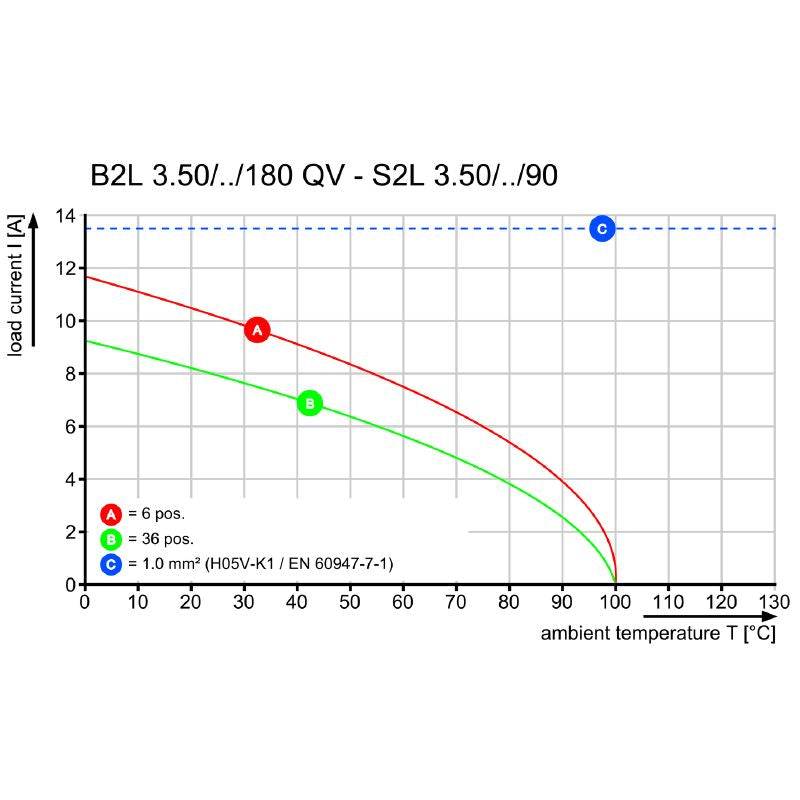

| IEC Rated Current | 10.6 A |
| UL Rated Voltage | 150 V |
| UL Rated Current | 7 A |

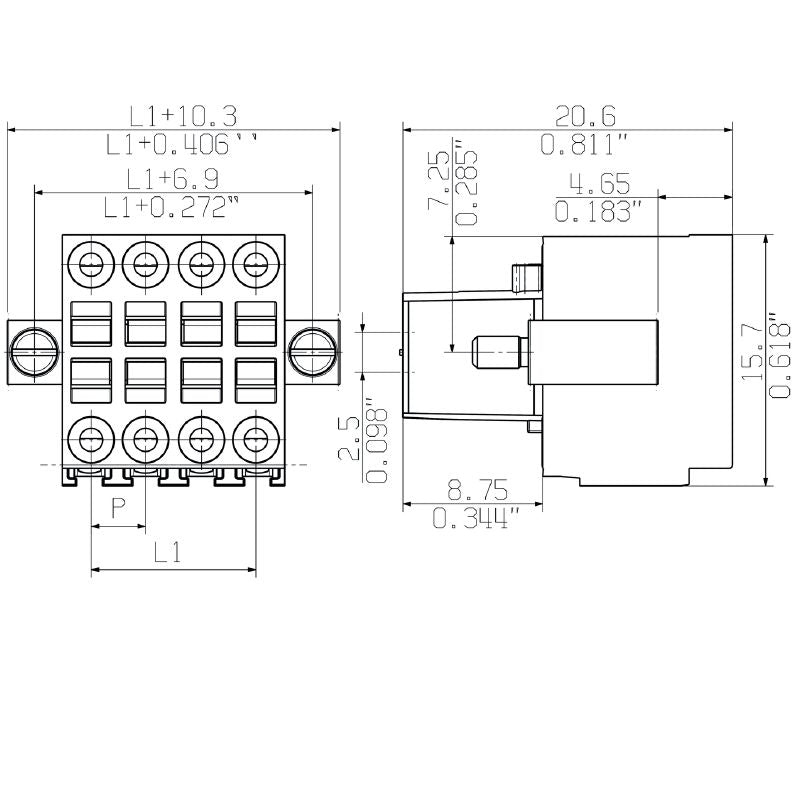

| Pitch | 3.5 mm |
| Number of Poles | 16 |
| Protection Degree | IP20 |
| Operating Temperature Range | -50 °C to 100 °C |
| Insulating Material | PBT |
| Color | black |
| Net Weight | 7.888 g |
