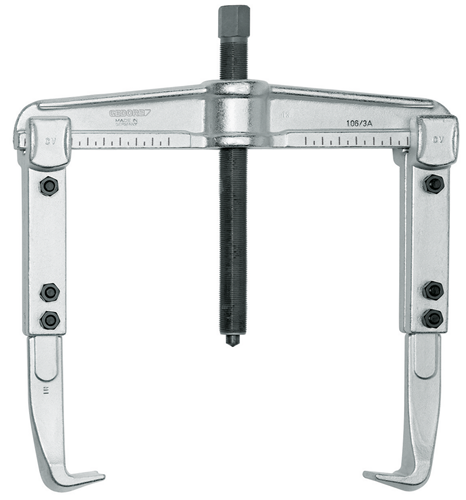

12460 - 520x500 mm Universal 2-Arm Puller with Adjustable Legs
12460 - 520x500 mm Universal 2-Arm Puller with Adjustable Legs
SKU: SKU: 12460
Couldn't load pickup availability
Description:
Introducing a versatile universal puller, expertly crafted with a robust drop forged design that includes a scale for precise adjustment of the puller legs This feature ensures consistent and centered pulling, even when faced with intense force The puller is equipped with extended legs and allows for dual functionality as both an external and internal puller by simply repositioning the legs Additionally, it offers interchangeable legs suitable for various clamping depths and can be enhanced with an optional hydraulic spindle for increased performance.
Features and Benefits:
•Strong drop forged pattern.
•Scale for uniform adjustment of the puller legs.
•Extended pulling legs for external and internal pulling.
•Interchangeable legs for various clamping depths.
•Upgradeable with hydraulic spindle.
•For removing drive pulleys, wheels, ball bearings etc..
Specifications:
| Total width [mm] | 580 mm |
| Total height [mm] | 90 mm |
| Total length [mm] | 600 mm |
| Tractive force (max.) [t] | 10 |
| Number of arms | 2 |
| Load of the entire puller (max.) [t] | 10 t |
| Width of hooked foot [mm] | 36 mm |
| Thickness of hooked foot at tip | 6,5 mm |
| Usable depth of hooked foot d2 [mm] | 28 mm |
| Clamping width (max.) external pulling [mm] | 520 mm |
| Clamping width a2 (max.) internal pulling [mm] | 600 mm |
| Clamping width a2 (min.) internal pulling [mm] | 185 mm |
| Spindle thread size | G1x310mm |
| Spindle Thread length (usable) [mm] | 310 mm |
| Spindle Surface coating | Nitro-carburated |
| Spindle Width across flats | 36 mm |
